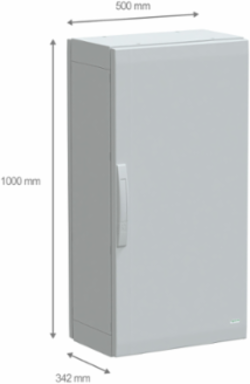

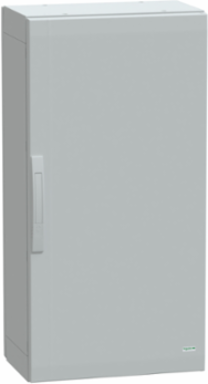

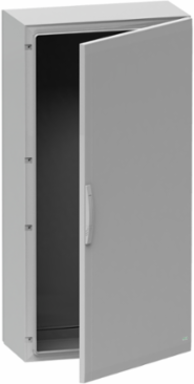

Thalassa Floor Standing Enclosure, 1000x500x320 mm, IP65, IK10
Thalassa Floor Standing Enclosure, 1000x500x320 mm, IP65, IK10
Thalassa Floor Standing Enclosure, 1000x500x320 mm, IP65, IK10
Thalassa Floor Standing Enclosure, 1000x500x320 mm, IP65, IK10
Schneider Electric

Schneider Electric NSYPLA1053G Thalassa Floor Standing Enclosure, 1000x500x320 mm, IP65, IK10

  • MPN: NSYPLA1053G
  • PPN: SCH-NSYPLA1053G

CAD

$1144.03

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Thalassa PLA Floor standing polyester enclosure, version PLA. 1250 x 1000 x 420 mm. Completely sealed. 4 points door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 54, IK10, Grey RAL 7035.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain, Indonesia, Philippines

Physical Attributes

Color
Gray RAL 7035)
Enclosure Nominal Width
500 mm, 500 mm
Enclosure Nominal Height1000 mm, 1000 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 top part, 1 bottom part
Enclosure Mounting
floor-standing
Product Or Component Type
suitable enclosure
Removable Parts
door by hinges, rear panel by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4
41 kg CO2 eq., 41.03091287780228
Carbon Footprint Of The Manufacturing Phase A1 To A3
82 kg CO2 eq., 81.73918023662758
Certificate Agency
Veritas, DNV Marine, UL/cUL listed
Local Publishable Date
2025-07-10
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Body Type
sealed top and bottom part assembled with side parts
Device Short Name
PLA
Electrical Insulation Class
class II
Fire Resistance
960 °C IEC 62208
Number Of Doors
1
Product Name
PanelSeT PLA
Software Version
v6.1
Total Lifecycle Carbon Footprint
175 kg CO2 eq.
Warranty In Months
18
Pep Code
ENVPEP1105005EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Materialpolyester reinforced with fibreglass
RangePanelSeT
Carbon Footprint Of The Distribution Phase A444.66976038130165, 45 kg CO2 eq.
Carbon Footprint Of The Installation Phase A57.5796756639227, 8 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Lock Type4 points lock, 5 mm double-bar
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Silicone FreeYes
Door Type 1 Door TypeSolid
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %6

Environment Attributes Main

Ambient Air Temperature For Storage
-35-90 °C, -35-90 °C
Take Back
No
China Rohs Regulation
X
Silicon Free
Yes
Environmental Disclosure
ENVPEP1105005EN
Ip Degree Of Protection
IP65 IEC 60529 completely sealed)
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1105005EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Nema Degree Of ProtectionNEMA 13, NEMA 12, NEMA 3S, NEMA 2, NEMA 1, NEMA 5, NEMA 3X, NEMA 3, NEMA 3R
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint175.0195291596542
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
suitable enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
