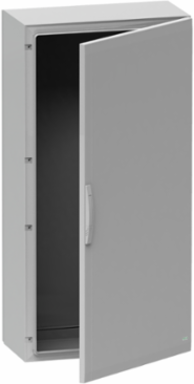

Schneider Electric NSYPLA1553G Floor Standing Polyester Enclosure 1500x500x320mm IP65 IK10
- MPN: NSYPLA1553G
- PPN: SCH-NSYPLA1553G
CAD
$1504.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

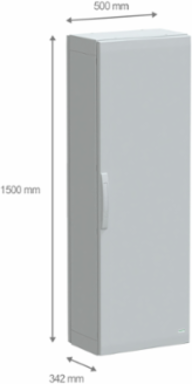

Designed for durability and versatility, this floor-standing polyester enclosure from Schneider Electric is ideal for a range of applications. With a robust construction that includes a completely sealed design and an IP65 rating, it offers exceptional protection against dust and water ingress, making it suitable for challenging environments. The enclosure features a solid front door with a reversible opening and a secure 4-point locking mechanism, ensuring both accessibility and security. Measuring 1500mm in height, 500mm in width, and 320mm in depth, it is crafted from fiberglass-reinforced polyester, providing excellent resistance to impacts with an IK10 rating. This enclosure not only meets stringent safety standards, including UL 508 A and IEC 62208, but also supports a wide range of electrical installations, making it an essential component for any project requiring reliable and efficient enclosure solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 1500 mm, 1500 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width500 mm, 500 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part2 side part, 1 rear panel, 1 door
- Certificate Agency
- UL/cUL listed, DNV Marine, Veritas
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 57 kg CO2 eq., 56.53147996497203
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 113 kg CO2 eq., 112.61842610379799
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Opening Side
- reversible 120 °)
- Enclosure Mounting
- floor-standing
- Fire Resistance
- 960 °C IEC 62208
- Material
- polyester reinforced with fibreglass
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hingesrear panel by fixing element
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 241 kg CO2 eq.
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typefront, Solid
Carbon Footprint Of The Distribution Phase [A4]61.545003192015606, 62 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]10.44310869251572, 10 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typesealed top and bottom part assembled with side parts
Device Short NamePLA
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Type4 points lock, 5 mm double-bar
Number Of Doors1
Product NamePanelSeT PLA
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Door Type 1 Door TypeSolid
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %6
Package Weight(Lbs)31.000 kg
Take-backNo
Customs Code9403704031
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP65 IEC 60529 completely sealed)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Nema Degree Of ProtectionNEMA 13, NEMA 1, NEMA 12, NEMA 2, NEMA 5, NEMA 3X, NEMA 3R, NEMA 3, NEMA 3S
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint241.13801795330133
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
