Schneider Electric NSYPLA1073G PanelSeT PLA 1000x750x320mm Polyester Enclosure, IP65, IK10

  • MPN: NSYPLA1073G
  • PPN: SCH-NSYPLA1073G
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1285.37

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

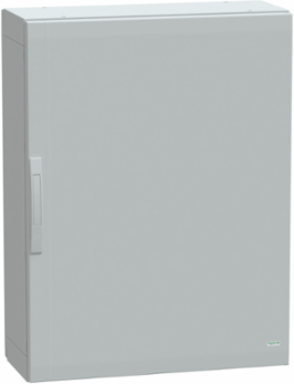

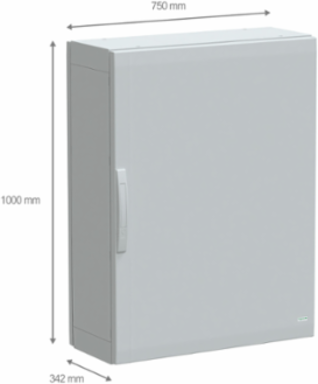

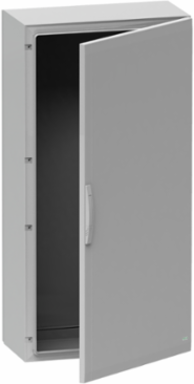

    Thalassa PLA floor standing polyester enclosure. 1000x 750x 320 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accessible front and rear. Reversible 120° opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Spain, Indonesia, Philippines

    Physical Attributes

    Enclosure Nominal Height
    1000 mm, 1000 mm
    Color
    Gray RAL 7035)
    Enclosure Nominal Width750 mm, 750 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    1 top part, 1 bottom part2 side part, 1 rear panel, 1 door
    Certificate Agency
    Veritas, UL/cUL listed, DNV Marine
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    51 kg CO2 eq., 50.69597235568459
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    101 kg CO2 eq., 100.99329824792206
    Local Data Status
    Publishable
    Return Indicator
    N
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1916
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Body Type
    sealed top and bottom part assembled with side parts
    Device Short Name
    PLA
    Electrical Insulation Class
    class II
    Energy Efficiency Optimized
    False
    Lock Type
    4 points lock, 5 mm double-bar
    Number Of Doors
    1
    Product Name
    PanelSeT PLA
    Range
    PanelSeT
    Returnability
    No
    Sustainable Packaging
    No
    Door Type 1 Door Type
    Solid
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Spain, ES
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    6
    Package Weight(Lbs)
    27.800 kg
    Take-back
    No
    Customs Code
    9403704031
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Door Typefront, Solid
    Carbon Footprint Of The Distribution Phase [A4]55.191970604452706, 55 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]9.365110375868936, 9 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2025-07-10
    Stocking FlagY
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Applicationmulti-purpose
    Door Opening Sidereversible 120 °)
    Enclosure Mountingfloor-standing
    Fire Resistance960 °C IEC 62208
    Materialpolyester reinforced with fibreglass
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typesuitable enclosure
    Removable Partsdoor by hingesrear panel by fixing element
    Software Versionv6.1
    Total Lifecycle Carbon Footprint216 kg CO2 eq.
    Pep CodeENVPEP1105005EN
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Nbr. Of Units In Pkg.1
    Silicone-freeYes
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -35-90 °C, -35-90 °C
    Take Back
    No
    China Rohs Regulation
    X
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP1105005EN
    Ip Degree Of Protection
    IP65 IEC 60529 completely sealed)
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1105005EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Nema Degree Of ProtectionNEMA 5, NEMA 1, NEMA 2, NEMA 3X, NEMA 3, NEMA 3R, NEMA 12, NEMA 3S, NEMA 13
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint216.2463515839283
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    suitable enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
