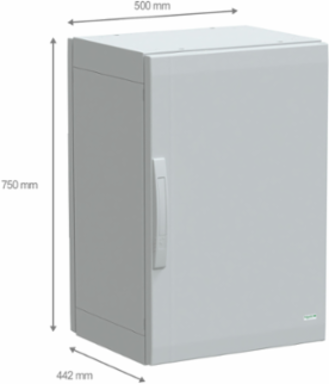

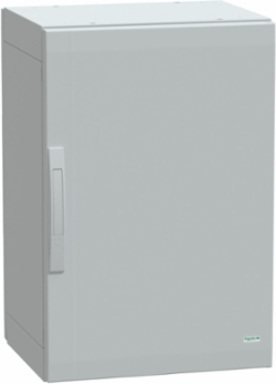

Schneider Electric NSYPLA754G PanelSeT PLA Floor Standing Polyester Enclosure, 750x500x420mm, IP65, IK10

MPN: NSYPLA754G
PPN: SCH-NSYPLA754G
UNSPSC: 39121324

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$997.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for versatility and robust protection, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various applications. With dimensions of 750x500x420 mm and a completely sealed construction that meets IP65 standards, it ensures reliable performance in challenging environments. The enclosure features a solid front door with a reversible opening, making it accessible from both the front and rear, while its durable fiberglass-reinforced polyester body offers excellent resistance to impacts (IK10) and high temperatures (up to 960 C). Certified for safety and reliability with UL/cUL and DNV Marine approvals, this enclosure is perfect for housing sensitive electrical components while providing peace of mind against environmental factors.

Features

Multi-purpose, floor-standing unit ideal for indoor and outdoor applications.
Durable polyester fiberglass construction for long-lasting performance.

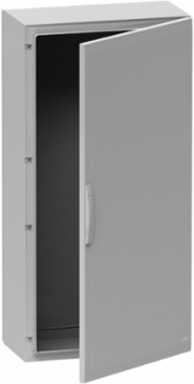

Easy access to equipment with 120° opening door from either side.
Robust protection against fire, impact, dust, and water.
Two-point lock with a 5mm double-bar insert for added security.
Removable rear panel and door for easy maintenance.
Class II electrical insulation to prevent electric shocks.
Wide ambient air temperature range of -35°C to 90°C for storage.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	19200 g

Physical Attributes

Enclosure Nominal Height	750 mm, 750 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	500 mm, 500 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 1 rear panel, 1 door
Certificate Agency	Veritas, UL/cUL listed, DNV Marine
Carbon Footprint Of The End Of Life Phase C1 To C4	35 kg CO2 eq., 35.01304565572461
Carbon Footprint Of The Manufacturing Phase A1 To A3	70 kg CO2 eq., 69.75076713525551
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	reversible 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesrear panel by fixing element
Software Version	v6.1
Total Lifecycle Carbon Footprint	149 kg CO2 eq.
Database Version	2023-02
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	38.1181955253774, 38 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	6.467989899880703, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	sealed top and bottom part assembled with side parts
Device Short Name	PLA
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	2 points lock, 5 mm double-bar
Number Of Doors	1
Product Name	PanelSeT PLA
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Customs Code	9403704031
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP65 IEC 60529 completely sealed)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Nema Degree Of Protection	NEMA 3, NEMA 2, NEMA 3S, NEMA 12, NEMA 5, NEMA 13, NEMA 3R, NEMA 3X, NEMA 1
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	149.34999821623825
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
