Schneider Electric NSYPLA12126G PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x620mm IP65 IK10

  • MPN: NSYPLA12126G
  • PPN: SCH-NSYPLA12126G

CAD

$2929.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

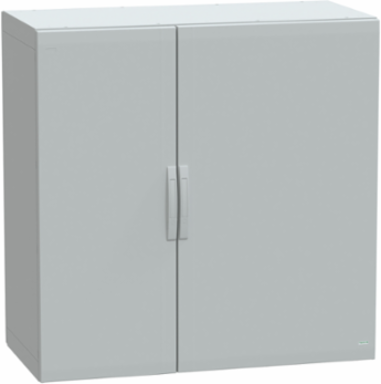

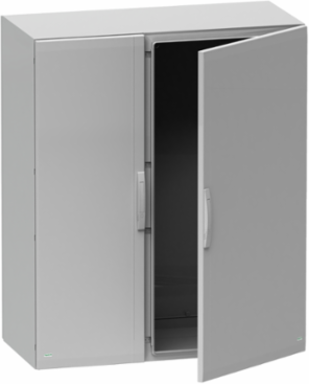

Designed for durability and versatility, the floor-standing polyester enclosure from Schneider Electric, known as the PanelSeT PLA, provides a robust solution for various applications. With its completely sealed design, this enclosure meets IP65 standards, ensuring protection against dust and water ingress, while its IK10 rating guarantees resistance to mechanical impacts. Measuring 1250x1250x620 mm, it features a solid front door with dual access options, making it suitable for a range of environments. Crafted from fiberglass-reinforced polyester, this enclosure is built to withstand extreme temperatures and harsh conditions, making it an ideal choice for demanding industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

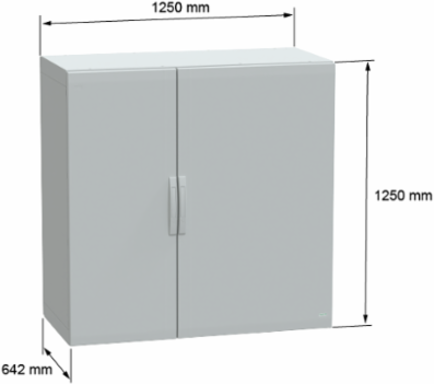

Enclosure Nominal Height
1250 mm, 1250 mm
Color
Gray RAL 7035)
Enclosure Nominal Width1250 mm, 1250 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
Removable Parts
door by hinges, rear panel by fixing element
Carbon Footprint Of The Distribution Phase [A4]
142.94323322016527, 143 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
24.254962124552634, 24 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
0 kg CO2 eq., 0
Local Publishable Date
2025-09-16
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Body Type
sealed top and bottom part assembled with side parts
Device Short Name
PLA
Electrical Insulation Class
class II
Energy Efficiency Optimized
False
Lock Type
4 points lock, 5 mm double-bar
Number Of Doors
2
Product Name
PanelSeT PLA
Range
PanelSeT
Software Version
v6.1
Total Lifecycle Carbon Footprint
560 kg CO2 eq.
Pep Code
ENVPEP1105005EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Certificate AgencyUL/cUL listed, Veritas, DNV Marine
Carbon Footprint Of The End-of-life Phase [C1 To C4]131 kg CO2 eq., 131.29892120896727
Carbon Footprint Of The Manufacturing Phase [A1 To A3]262 kg CO2 eq., 261.5653767572082
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Sustainable PackagingNo
Door Type 1 Door TypeSolid
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %6
Package Weight(Lbs)70.000 kg
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage
-35-90 °C, -35-90 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
560.0624933108934
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Nema Degree Of ProtectionNEMA 13, NEMA 12, NEMA 2, NEMA 1
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP65 IEC 60529 completely sealed)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
suitable enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
