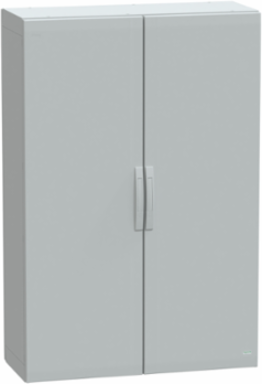

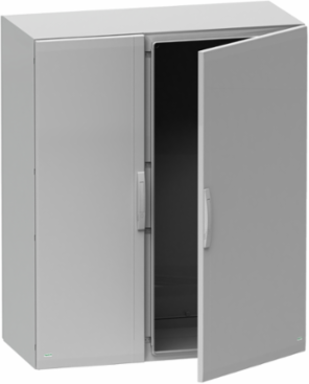

Schneider Electric NSYPLA15104G Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1500x1000x420mm, IP65, IK10
Schneider Electric NSYPLA15104G Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1500x1000x420mm, IP65, IK10
- MPN: NSYPLA15104G
- PPN: SCH-NSYPLA15104G
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2335.49/ EA
Description
Thalassa PLA Floor standing polyester enclosure completely sealed, version PLA. 1499 x 1000 x 420 mm. Sealed top and bottom part assembled with side parts. 4 point door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 65, IK10, Grey RAL 7035.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 1000 mm, 1000 mm
Enclosure Nominal Height1500 mm, 1500 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
- Enclosure Mounting
- floor-standing
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hinges, rear panel by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 108 kg CO2 eq., 107.95689077181756
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 215 kg CO2 eq., 215.06486533370455
- Certificate Agency
- DNV Marine, UL/cUL listed, Veritas
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- sealed top and bottom part assembled with side parts
- Device Short Name
- PLA
- Electrical Insulation Class
- class II
- Fire Resistance
- 960 °C IEC 62208
- Number Of Doors
- 2
- Product Name
- PanelSeT PLA
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 460 kg CO2 eq.
- Warranty In Months
- 18
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Offer Owner Code
- 190789
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Materialpolyester reinforced with fibreglass
RangePanelSeT
Carbon Footprint Of The Distribution Phase A4117.53110286991367, 118 kg CO2 eq.
Carbon Footprint Of The Installation Phase A519.942968857965504, 20 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 120 °)
Energy Efficiency OptimizedFalse
Lock Type4 points lock, 5 mm double-bar
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Silicone FreeYes
Door Type 1 Door TypeSolid
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %6
Pn1
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP65 IEC 60529 completely sealed)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Nema Degree Of ProtectionNEMA 1, NEMA 2, NEMA 13, NEMA 12
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint460.4958278334013
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
