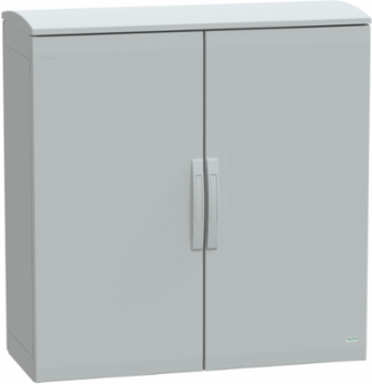

Schneider Electric NSYPLAT10104G Floor Standing Polyester Enclosure 1000x1000x420mm IP44 IK10

MPN: NSYPLAT10104G
PPN: SCH-NSYPLAT10104G
UNSPSC: 39121324

$2474.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for durability and versatility, this floor-standing polyester enclosure from Schneider Electric is an excellent choice for various applications. With dimensions of 1000x1000x420mm, it features a solid front door and a ventilated canopy, ensuring adequate airflow while maintaining a robust structure. Constructed from fiberglass-reinforced polyester, this enclosure offers exceptional resistance to environmental conditions, boasting an IP44 rating for protection against dust and water, as well as IK10 for impact resistance. Its thoughtful design includes a dual-door system for easy access from either side, making it ideal for installation in tight spaces. Whether you require a reliable housing solution for electrical components or a sturdy enclosure for general purposes, this model meets the highest standards of performance and safety.

Features

Multi-purpose floor-standing enclosure suitable for various applications
Made from polyester reinforced with fiberglass for increased durability

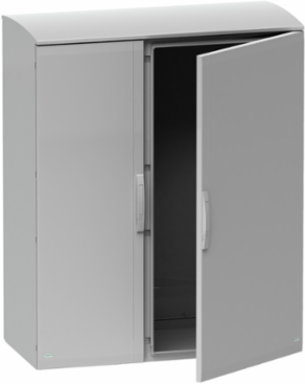

Doors can be opened from both sides up to 120° for easy access
Four-point lock with a handle that has a 5mm double-bar insert for security
Offers robust protection against fire, impact, dust, and water
Class II electrical insulation to prevent electric shocks
Can withstand ambient air temperatures ranging from -35°C to 90°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	46500 g

Physical Attributes

Enclosure Nominal Height	1000 mm, 1000 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	1000 mm, 1000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 2 door, 2 rear panel, 1 canopy
Removable Parts	door by hingesrear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4	85 kg CO2 eq., 84.79721994745803
Carbon Footprint Of The Manufacturing Phase A1 To A3	169 kg CO2 eq., 168.92763915569697
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	right and left 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	92.3175047880234, 92 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	15.664663038773577, 16 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	open top and sealed bottom part assembled with side parts
Device Short Name	PLAT
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	2
Product Name	PanelSeT PLA
Range	PanelSeT
Software Version	v6.1
Total Lifecycle Carbon Footprint	362 kg CO2 eq.
Database Version	2023-02
Certificate Agency	Veritas
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP44 IEC 60529 with ventilated canopy)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	361.70702692995195
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
