Schneider Electric NSYMUPLA104G Horizontal Coupling Kit for Enclosures 1000 mm x 420 mm x 15 mm IP55
Schneider Electric NSYMUPLA104G Horizontal Coupling Kit for Enclosures 1000 mm x 420 mm x 15 mm IP55
- MPN: NSYMUPLA104G
- PPN: SCH-NSYMUPLA104G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$156.34/ EA
Description
Designed for versatility and durability, this horizontal coupling kit is an essential accessory for the Thalassa range of enclosures. With a robust frame made of polyester, it provides reliable side coupling for two enclosures, ensuring an effective and secure assembly. The kit features a nominal height of 1000 mm, a width of 15 mm, and a depth of 420 mm, all while maintaining an IP55 protection rating, making it suitable for various environmental conditions. Ideal for multi-purpose applications, this coupling kit is a practical solution for enhancing your enclosure setup while adhering to high standards of quality and performance.
Features

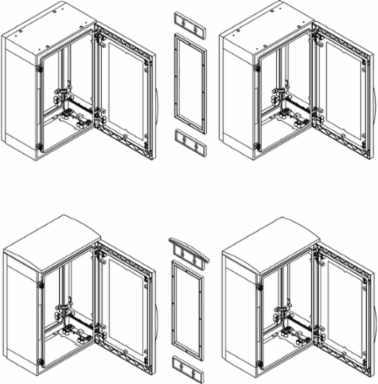

- For coupling two enclosures side by side.
- Coupling frame kit: Made up of a coupling kit and the fixings required for installation.
- Trim kit: Made up of two frames for aesthetic fitting of the two coupled enclosures
- Coupling kit widths: 15 mm, joining two enclosures mounted on ZA plinths
- Ingress protection rating: IP55 at the coupling point
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 frame, fixing elements
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Material
- frame polyester
- Mounting Support
- ZA plinth
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- Horizontal coupling kit for PLA enclosure H1000xD420 mm - 15 mm - IP55 coupling
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Mounting Locationside coupling of 2 enclosures
Package Weight Lbs1.128 kg
Product Or Component Typecoupling frame
ReturnabilityNo
Accessory Separate Part Category2coupling accessory
Stocking FlagY
Pep CodeENVPEP1105005EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
IP Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
General Attributes
- Product Or Component Type
- coupling frame
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 39.37 in
- Depth
- 420 mm
Width0.59 in
