Schneider Electric

Schneider Electric NSYPLAZ1574G Floor Standing Polyester Enclosure, 1500x750x420mm, IP54, IK10

  • MPN: NSYPLAZ1574G
  • PPN: SCH-NSYPLAZ1574G

CAD

$2227.35

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

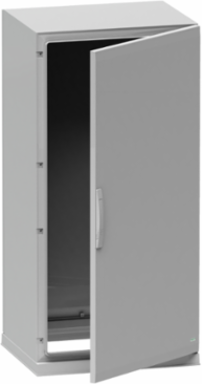

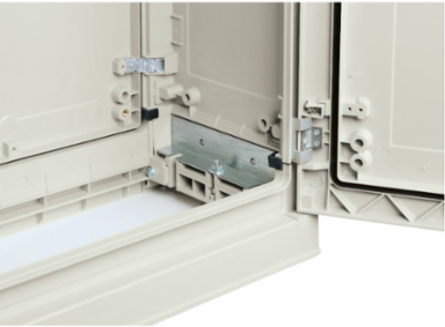

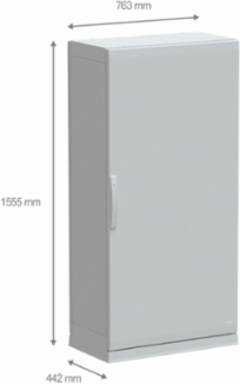

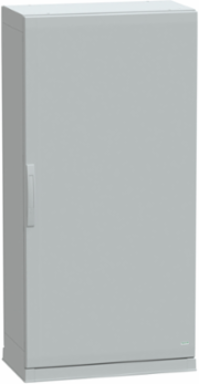

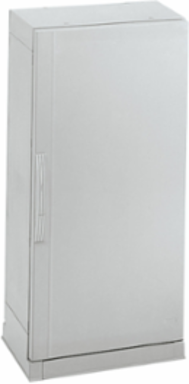

Thalassa PLA Floor standing polyester enclosure, version PLAZ. 1500 x 750 x 420 mm. With open bottom plinth. 4 point door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 54, IK10, Grey RAL 7035.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

Enclosure Nominal Height
1500 mm, 1500 mm
Color
Gray RAL 7035)
Enclosure Nominal Width750 mm, 750 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 top part, 1 bottom part2 side part, 1 rear panel, 1 door, 1 plinth
Carbon Footprint Of The Distribution Phase [A4]
83.38355271176307, 83 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
14.148727905989038, 14 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Publishable Date
2025-07-10
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Body Type
sealed top and open bottom part assembled with side parts
Device Short Name
PLAZ
Electrical Insulation Class
class II
Energy Efficiency Optimized
False
Lock Type
4 points lock, handle with 5 mm double bar insert
Number Of Doors
1
Product Name
PanelSeT PLA
Range
PanelSeT
Returnability
No
Sustainable Packaging
No
Door Type 1 Door Type
Solid
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Spain, ES
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %
6
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
9403704031
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typefront, Solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]77 kg CO2 eq., 76.59103737189758
Carbon Footprint Of The Manufacturing Phase [A1 To A3]153 kg CO2 eq., 152.57980310837146
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sidereversible 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
Removable Partsdoor by hingesrear panel by fixing element
Software Versionv6.1
Total Lifecycle Carbon Footprint327 kg CO2 eq.
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyVeritas
Package Weight(Lbs)42.000 kg
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage
-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP1105005EN
Ip Degree Of Protection
IP54 IEC 60529 plinth type open bottom)
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1105005EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint326.70312109802114
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
suitable enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
