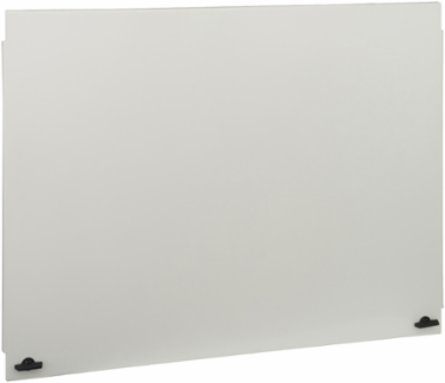

Schneider Electric NSYPAP108G Reversible Polyester Internal Door 849 x 650 mm, 2 Locks, Grey RAL 7035
Schneider Electric NSYPAP108G Reversible Polyester Internal Door 849 x 650 mm, 2 Locks, Grey RAL 7035
- MPN: NSYPAP108G
- PPN: SCH-NSYPAP108G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$188.51/ EA
Description

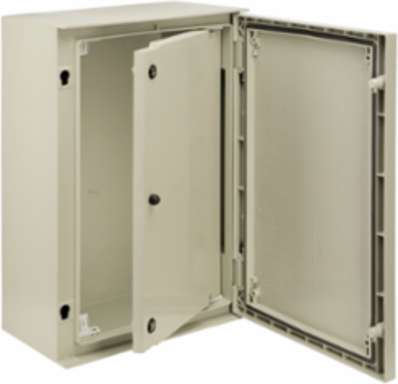

Reversible internal polyester door with grid pattern for Thalassa PLM108. 849 x 650 mm. Multi-purpose. Internal plain door. 2 locks with 5 mm double bar insert system. Reversible 110° opening side. Polyester charged with fibreglass material. Grey RAL 7035. Door, handle, 4 fixing brackets incl.
Features
- Reversible internal door
- Grid pattern with a pitch of 25 mm for easier marking before drilling.
- Closes with 2 double-bar locks.
- Door handle.
- Material: Polyester reinforced with fiberglass, self-extinguishing
- Same color as enclosure
- Color: RAL 7035 grey
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 1 handle, 4 fixing brackets
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Door Type
- internal plain
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front side
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- reversible internal door polyester 2 locks grid pattern forPLM108
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-02-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Door Opening Sidereversible 110 °)
Energy Efficiency OptimizedFalse
Materialpolyester charged with fibreglass
Package Weight Lbs6.800 kg
Product Or Component Typedoor
ReturnabilityYes
Accessory Separate Part Category2enclosure accessory
Stocking FlagN
Pep CodeENVPEP1001004EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1001004EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- door
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 33.46 in
- Country of Origin
- Philippines
Width25.59 in
