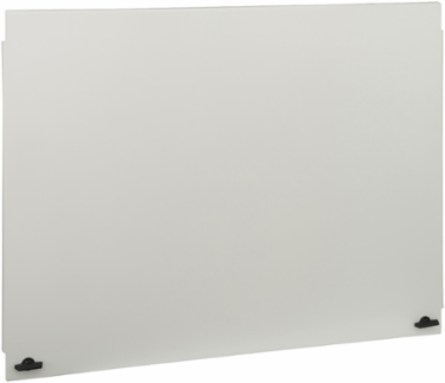

Schneider Electric NSYPAP75G Reversible Internal Polyester Door 615x405mm, Dual Locks
- MPN: NSYPAP75G
- PPN: SCH-NSYPAP75G
CAD
$120.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

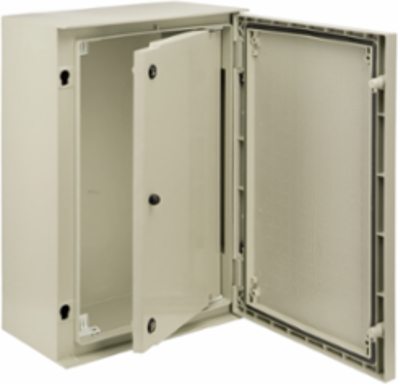

Reversible internal door in polyester charged with fibreglass for Thalassa PLM. 615 x 405 mm. Multi-purpose. Door type internal plain lock 5 mm double bar. Available depth between enclosure door 32mm. Grey RAL 7035.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, Indonesia, United States
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 1 handle, 4 fixing brackets
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Opening Side
- reversible 110 °)
- Energy Efficiency Optimized
- False
- Material
- polyester charged with fibreglass
- Number Of Locks
- 2
- Product Or Component Type
- door
- Returnability
- No
- Accessory Separate Part Category
- enclosure accessory
- Warranty In Months
- 18
- Height Nominal
- grid pattern: 615 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2041
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Door Typeinternal plain
Lock Typelock 5 mm double bar
Mounting Locationfront side
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Silicone FreeYes
Pep CodeENVPEP1001004EN
Width Nominalgrid pattern: 405 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1001004EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- door
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
