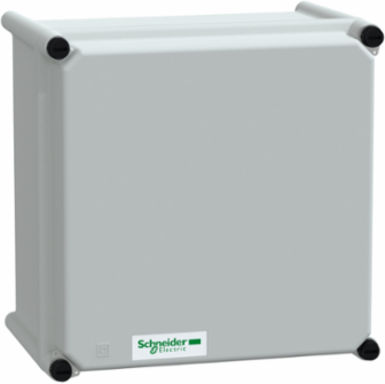

Schneider Electric NSYPLSP2727G Insulating Modular Box, IP66, 270x270x180 mm, Class II
Schneider Electric NSYPLSP2727G Insulating Modular Box, IP66, 270x270x180 mm, Class II
- MPN: NSYPLSP2727G
- PPN: SCH-NSYPLSP2727G
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$146.09/ EA
Description

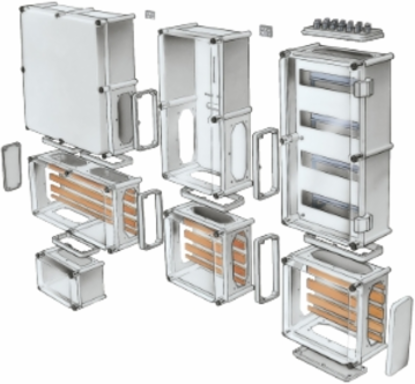

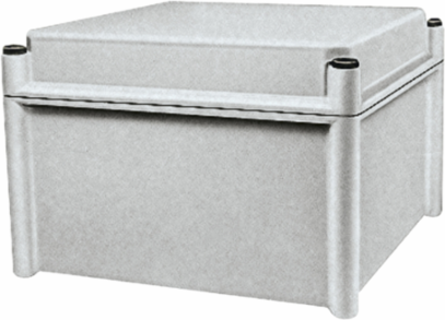

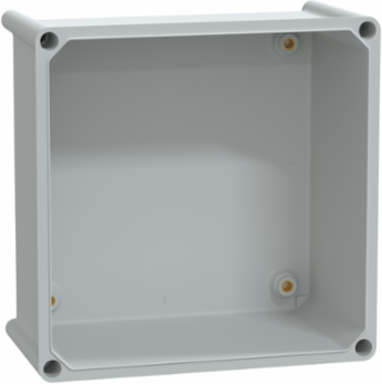

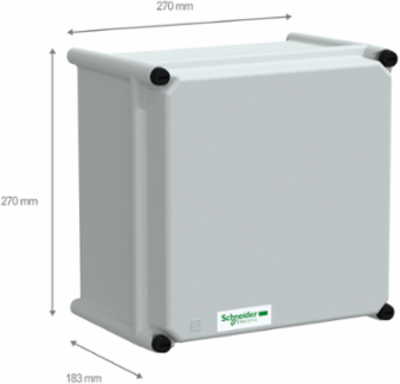

Thalassa PLS box polyester rear with opaque polyester cover. 270 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 270 mm
Enclosure Nominal Height270 mm
Conformance Attributes
- Standards
- IEC 62208, NEMA classification 13, NEMA 4X
Product CertificationsUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cover on enclosure, 1 rear part on enclosure, locking screws
- Carbon Footprint Of The Distribution Phase A4
- 4.308150223441092, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.2828561975653646, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-09
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- slot screw
- Product Name
- PanelSeT PLS
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Pep Code
- ENVPEP1107004EN
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 2170
- Energy Model Manufacturing A1 A3 2
- Spain, ES
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In 2
- 4
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialrear polyester reinforced with fibreglass, Cover polyester reinforced with fibreglass
Carbon Footprint Of The End Of Life Phase C1 To C45 kg CO2 eq., 4.664570498418257
Carbon Footprint Of The Manufacturing Phase A1 To A313 kg CO2 eq., 12.701933709573172
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2051
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeone piece moulded
Device Short NamePLS
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeinsulating modular box
Removable Partscover locking screw
Software Versionv6.1
Total Lifecycle Carbon Footprint22 kg CO2 eq.
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Offer Owner Code190789
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 21.957510628997888
- Environmental Disclosure
- ENVPEP1107004EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-30-70 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- insulating modular box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
