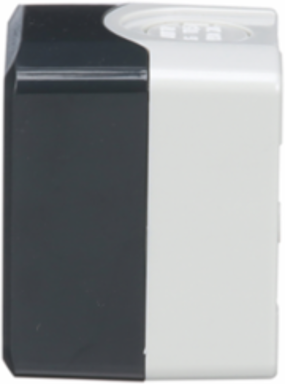

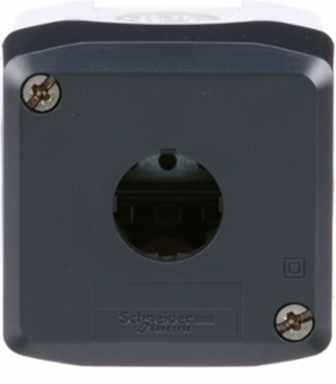

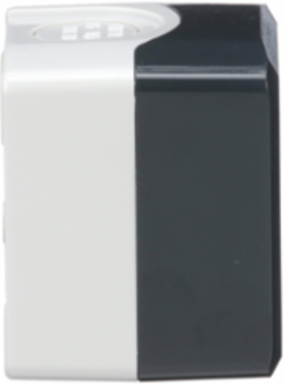

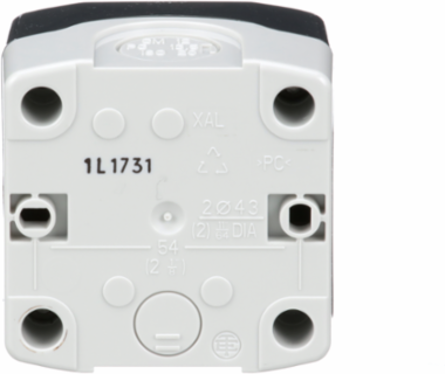

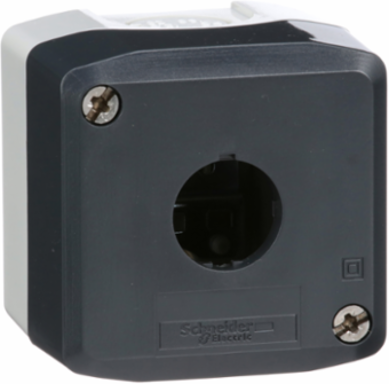

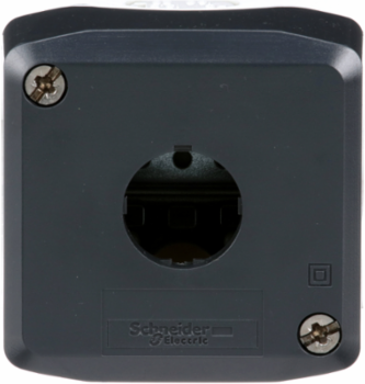

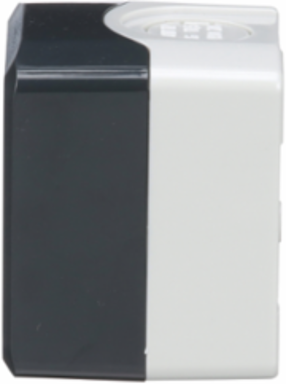

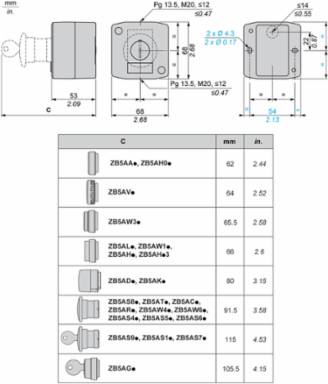

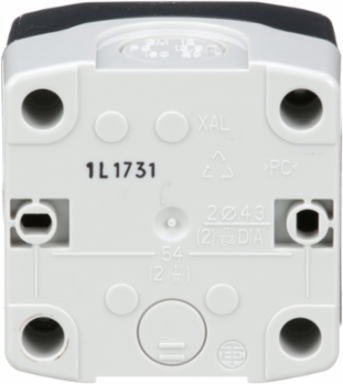

Schneider Electric XALD01H7 Harmony XALD Empty Control Station, 1 Cut-Out 22mm, IP66/IP67/IP69
- MPN: XALD01H7
- PPN: SCH-XALD01H7
CAD
$38.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- Specifically designed for the Schneider Electric Harmony XB5 series, this empty control station features a standard 22mm cutout. This precise engineering allows industrial technicians to custom-configure a single-function control point whether it's a start/stop button or an emergency pilot light ensuring a seamless, professional fit that eliminates component wiggle and mechanical wear.
- Molded from premium, light-grey polycarbonate, this enclosure provides exceptional resistance to chemical agents, corrosive cleaning detergents, and heavy physical impacts. This rugged build ensures your critical control points remain functional and protected in demanding manufacturing plants or outdoor settings, significantly extending the service life of your internal electrical components.
- Rated at IP66 and NEMA 4X, this station offers total protection against dust ingress and powerful jets of water from all directions. This superior sealing makes it the ideal choice for food processing facilities or marine applications where frequent washdowns and extreme weather are common, preventing moisture-related short circuits and costly production delays.
- This enclosure is fully UL 508 and CSA C22.2 No 14 certified, ensuring it meets the most stringent safety requirements for industrial control equipment. By using a factory-tested, code-compliant housing, you guarantee that your custom control station is safe for operator use and will easily pass workplace safety audits and electrical inspections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, Mexico
Physical Attributes
- Color Of Base Of Enclosure
- light grey RAL 7035)
Color Of Coverdark grey RAL 7016)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Mounting Of Block
- rear mounting, front mounting
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0175474301, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0008203757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Entry
- 1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Device Short Name
- XALD
- Group Of Product
- UL-CSA grey
- Material
- polycarbonate
- Number Of Vertical Rows
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- empty control station
- Range Of Product
- Harmony XALD
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Pep Code
- ENVPEP2506022EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Number Of Cut-out
- 1 cut-out
- Package Weight(Lbs)
- 118.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeMF2, MF1, MR1, PR1, SF1, SR2, SR1, PF1, PF2, SF2
Certificate AgencyUL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0256805453
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.8851773688
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506022EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Assembly Stylefor customer assembly
Compatibility CodeXALD
Gcr BridgeXALD01CUST01
Main Group1 cut-out
Number Of Horizontal Rows1
Overvoltage Categoryclass II conforming to IEC 60536
Product Destinationfor XB5 Ø 22 mm control and signalling units
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Color Of Coverdark grey RAL 7016)
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %18
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.92922572
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506022EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506022EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- empty control station
Range Of ProductHarmony XALD
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
