Schneider Electric NSYPLSP2754G Thalassa PLS Insulating Modular Box 27x54x18 cm, IP66, IK09
Schneider Electric NSYPLSP2754G Thalassa PLS Insulating Modular Box 27x54x18 cm, IP66, IK09
- MPN: NSYPLSP2754G
- PPN: SCH-NSYPLSP2754G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$211.68/ EA
Description

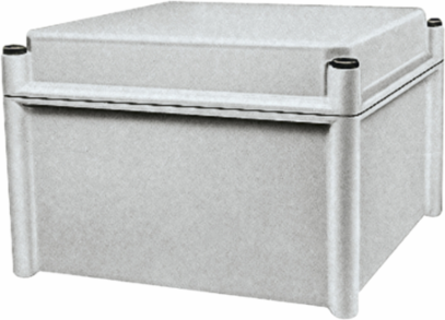

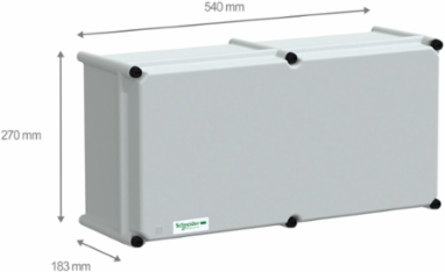

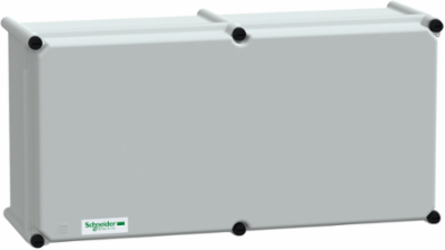

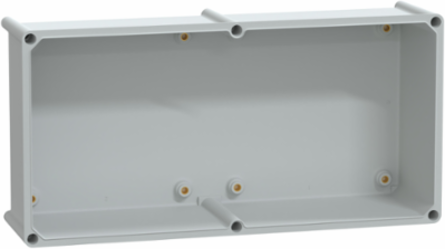

Thalassa PLS box polyester rear with opaque polyester cover. 270 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 540 mm
Enclosure Nominal Height270 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cover on enclosure, 1 rear part on enclosure, locking screws
- Carbon Footprint Of The Distribution Phase A4
- 6.97642391021751, 7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.4580445521864937, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Device Short Name
- PLS
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 3.514 kg
- Product Or Component Type
- insulating modular box
- Removable Parts
- cover locking screw
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Pep Code
- ENVPEP1107004EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Unit
- Unit
- Product Manager
- JULIA DESLCAZO
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialrear polyester reinforced with fibreglass, Cover polyester reinforced with fibreglass
Carbon Footprint Of The End Of Life Phase C1 To C48 kg CO2 eq., 7.553594807116015
Carbon Footprint Of The Manufacturing Phase A1 To A321 kg CO2 eq., 20.56893781356688
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Total Lifecycle Carbon Footprint36 kg CO2 eq.
Relationship TypeCompatible relationship
Pep Verification Date2024-08-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 35.557001083086895
- IP Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- insulating modular box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
