Schneider Electric NSYPLSP3636G PanelSeT PLS Insulating Modular Box IP66 36x36x18cm
- MPN: NSYPLSP3636G
- PPN: SCH-NSYPLSP3636G
CAD
$191.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

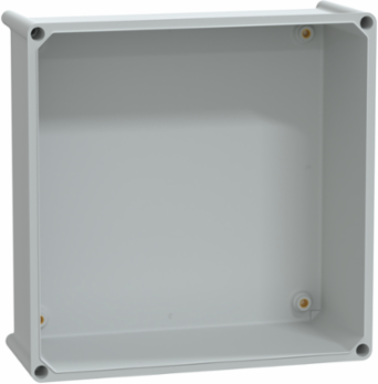

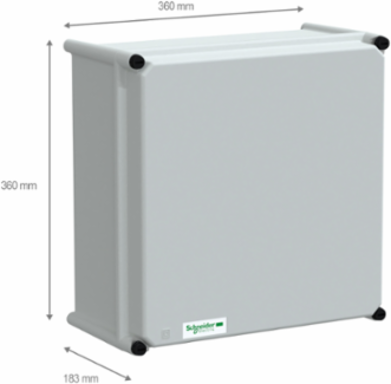

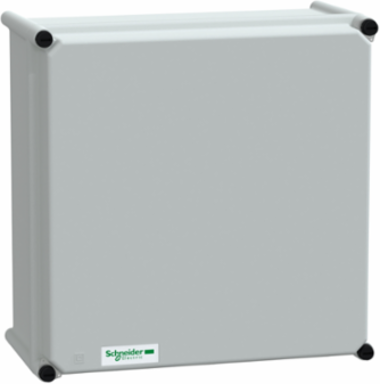

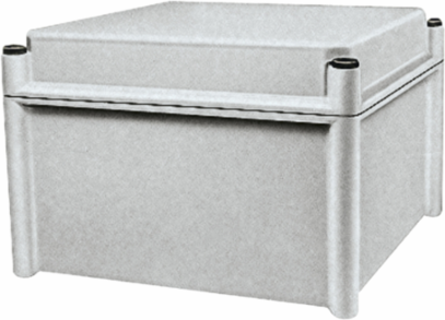

Thalassa PLS box polyester rear with opaque polyester cover. 360 x 360 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 360 mm
Enclosure Nominal Height360 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cover on enclosure, 1 rear part on enclosure, locking screws
- Carbon Footprint Of The Distribution Phase A4
- 5.9678799869419, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3918275252910074, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-09
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2051
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- one piece moulded
- Device Short Name
- PLS
- Enclosure Mounting
- wall mounted
- Fire Resistance
- 960 °C IEC 62208
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- insulating modular box
- Removable Parts
- cover locking screw
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Silicone Free
- Yes
- Pep Code
- ENVPEP1107004EN
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- UL
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialrear polyester reinforced with fibreglass, Cover polyester reinforced with fibreglass
Carbon Footprint Of The End Of Life Phase C1 To C46 kg CO2 eq., 6.461612404721327
Carbon Footprint Of The Manufacturing Phase A1 To A318 kg CO2 eq., 17.59539757187878
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Typeslot screw
Product NamePanelSeT PLS
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %4
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-70 °C, -30-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 30.416717488833015
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Environmental DisclosureENVPEP1107004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1107004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- insulating modular box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
