Schneider Electric

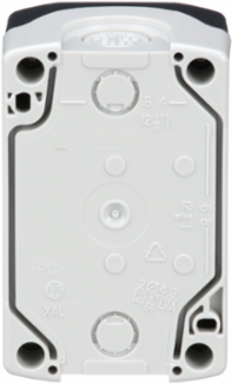

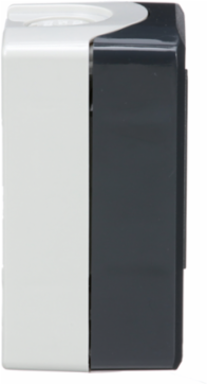

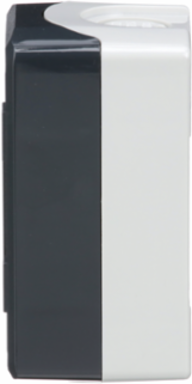

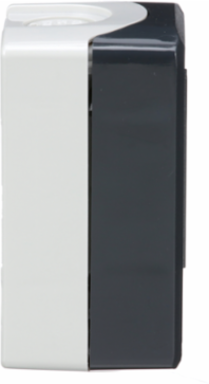

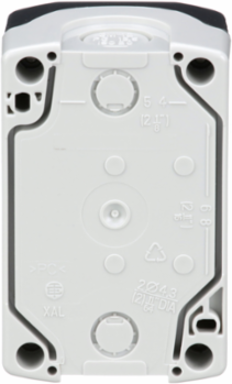

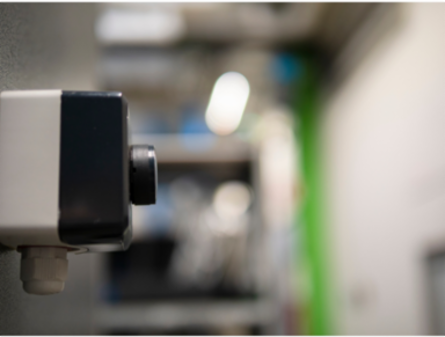

Schneider Electric XALD02H7 Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate

  • MPN: XALD02H7
  • PPN: SCH-XALD02H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $43.74

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

    Features

    • This empty Harmony XALD enclosure is specifically engineered for two 22mm diameter pushbuttons, switches, or pilot lights from the Schneider Electric XB5 plastic range. It provides a customizable, modular housing solution that allows industrial technicians to build a localized control station tailored to specific machinery functions without replacing the entire control architecture.
    • Built with a high-impact polycarbonate body, this station is rated IP66, IP67, IP69, and IP69K, making it completely dust-tight and resistant to high-pressure, high-temperature water jets. It is the ideal choice for food processing plants and chemical facilities where frequent sanitation and exposure to harsh cleaning agents would destroy standard electrical enclosures.
    • Fully compliant with UL 508 and CSA C22.2 No 14 standards, this control station housing ensures your custom-built operator interface meets the most rigorous safety requirements for North American and European markets. Utilizing a certified Schneider Electric enclosure protects your internal wiring from environmental damage and ensures your facility easily passes occupational safety inspections.

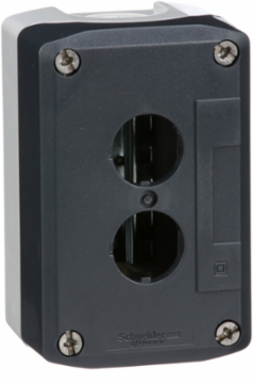

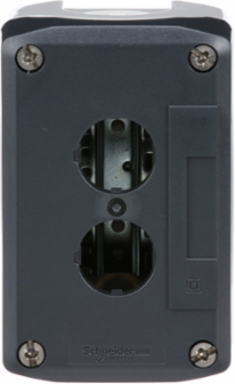

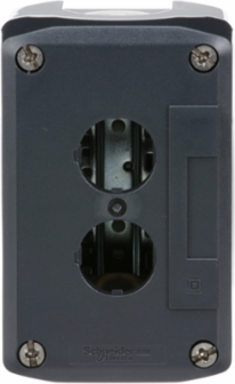

    • Featuring two vertical cutouts in a compact, light-grey base and dark-grey lid, this enclosure is designed for high-density mounting in tight spaces where localized "Start/Stop" or "Up/Down" functionality is required. The easy-to-drill knockouts and secure screw-lid assembly significantly reduce installation time for plant maintenance teams and OEM panel builders.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCzechia, France, Mexico, United States

    Physical Attributes

    Color Of Base Of Enclosurelight grey RAL 7035)
    Color Of Coverdark grey RAL 7016)

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Customizable1, no
    Mounting Of Blockrear mounting, front mounting
    Carbon Footprint Of The Distribution Phase [A4]0.1348882860870545, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.000795044174668321, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN

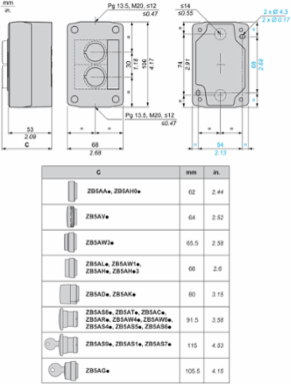

    Cable Entry2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Device Short NameXALD
    Group Of ProductUL-CSA grey
    Materialpolycarbonate
    Number Of Vertical Rows2
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeempty control station
    Range Of ProductHarmony XALD
    ReturnabilityYes
    Sustainable PackagingYes
    Color Of Base Of Enclosurelight grey RAL 7035)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Number Of Cut-out2 cut-outs
    Package Weight(Lbs)185.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeSF2, MF1, MF2, SF1, SR2, PF2, PF1, PR1, MR1, SR1
    Certificate AgencyUL, CSA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3951144652890238
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.004615533256618
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylefor customer assembly
    Compatibility CodeXALD
    Gcr BridgeXALD02CUST01
    Main Group2 cut-outs
    Number Of Horizontal Rows1
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Software Versionv6.3.0.1-4
    Total Lifecycle Carbon Footprint2 kg CO2 eq.
    Color Of Coverdark grey RAL 7016)
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %18
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code3926909989

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint1.5354133288073644
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typeempty control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8EC000200
    ETIM 9EC000200

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
    Harmony XALD Empty Control Station, 2 Cut-Outs, IP69K Rated, Polycarbonate
