Schneider Electric NSYPLAZT1054G PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10

PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1000x500x420mm IP44 IK10
  • MPN: NSYPLAZT1054G
  • PPN: SCH-NSYPLAZT1054G

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$1722.69/ EA

    Description

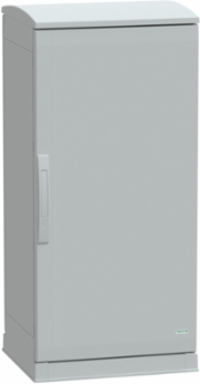

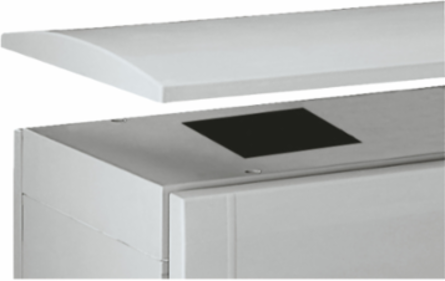

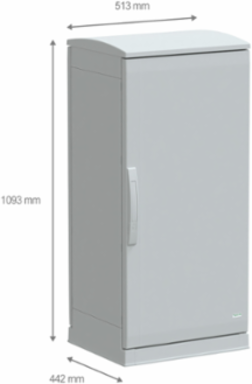

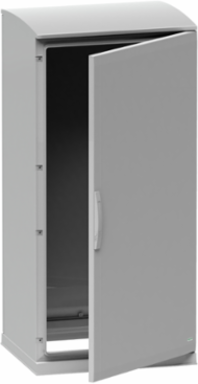

    This floor-standing polyester enclosure from Schneider Electric is designed for versatility and durability, making it an ideal choice for various applications. With a robust construction reinforced with fiberglass, it boasts an impressive IK10 impact resistance and an IP44 rating, ensuring reliable protection against environmental factors. Measuring 1000mm in height, 500mm in width, and 420mm in depth, this enclosure features a solid front door that is reversible for easy access and a ventilated canopy for optimal airflow. Its multi-purpose design accommodates diverse electrical installations while the four-point locking mechanism enhances security, making it a practical solution for both industrial and commercial environments.

    Specifications

    Assets

    Cad
    https://download.schneider-electric.com/files?p_Doc_Ref=NSYPLA1054G_2D-Drawing&p_File_name=PLA1054-1000x500x420.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000892_3D-CAD&p_File_name=MCADUE0000892_2D-top.dxf

    Physical Attributes

    Enclosure Nominal Height
    1000 mm, 1000 mm
    Color
    Gray RAL 7035)
    Enclosure Nominal Width500 mm, 500 mm

    Conformance Attributes

    Product Certifications
    Veritas
    StandardsIEC 62208

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
    Removable Parts
    door by hinges, rear panel by fixing element, canopy by fixing element
    Carbon Footprint Of The End Of Life Phase C1 To C4
    52 kg CO2 eq., 51.79013003242599
    Carbon Footprint Of The Manufacturing Phase A1 To A3
    103 kg CO2 eq., 103.1730097208988
    Medium Desc
    Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x500x420mm, IP44, IK10
    Local Publishable Date
    2025-12-09
    Return Indicator
    N
    Legacy Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Function Option
    Standard
    Body Type
    open top and bottom part assembled with side parts
    Device Short Name
    PLAZT
    Electrical Insulation Class
    class II
    Energy Efficiency Optimized
    False
    Lock Type

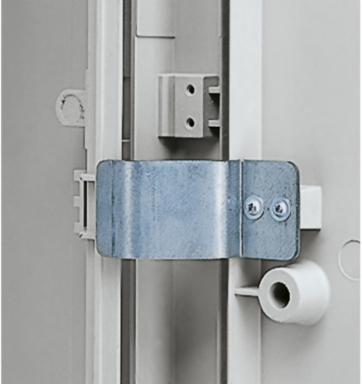

    4 points lock, handle with 5 mm double bar insert
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    suitable enclosure
    Returnability
    No
    Sustainable Packaging
    No
    Door Type 1 Door Type
    Solid
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional Unit Description
    Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    Energy Model Manufacturing A1 A3 2
    Spain, ES
    Energy Model Use B6 2
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Door TypeSolid front, Solid
    Carbon Footprint Of The Distribution Phase A456.38316421462075, 56 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A59.567235060240208, 10 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
    Local Data StatusPublishable
    Global Commercial StatusCommercialised
    Stocking FlagY
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    China Rohs In ScopeYes
    Without Single Use PlasticNo
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Applicationmulti-purpose
    Door Opening Sidereversible 180 °)
    Enclosure Mountingfloor-standing
    Fire Resistance960 °C IEC 62208
    Materialpolyester reinforced with fibreglass
    Product NamePanelSeT PLA
    RangePanelSeT
    Software Versionv6.1
    Total Lifecycle Carbon Footprint221 kg CO2 eq.
    Pep CodeENVPEP1105005EN
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional Unit UnitUnit
    Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27

    Environment Attributes Main

    Take Back
    Nej
    China Rohs Regulation
    X
    Carbon Footprint
    220.91353902818574
    Environmental Disclosure
    ENVPEP1105005EN
    Ip Degree Of Protection
    IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1105005EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-35-90 °C
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    suitable enclosure

    ETIM

    ETIM 8
    EC000261
    ETIM 9EC000261

    Contractual Warranty Attributes

    Warranty Period
    18 months
