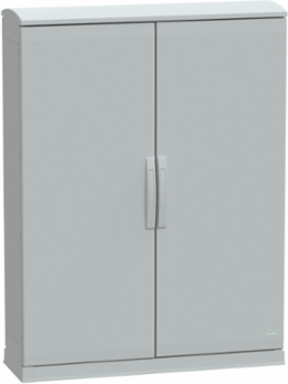

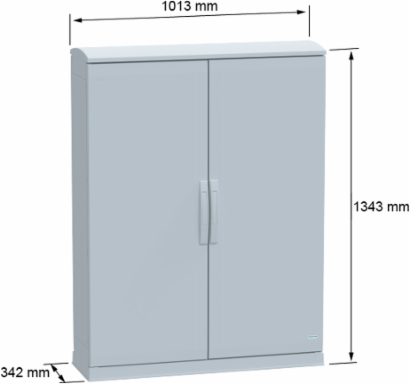

Schneider Electric NSYPLAZT12103G Floor Standing Polyester Enclosure, 1250 x 1000 x 320 mm, IP44, IK10
- MPN: NSYPLAZT12103G
- PPN: SCH-NSYPLAZT12103G
CAD
$3185.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

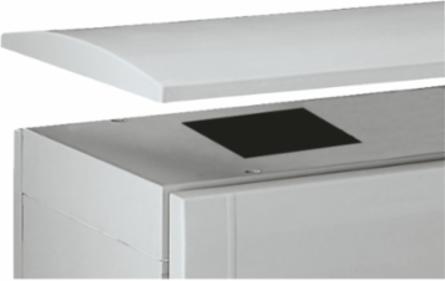

Designed for versatility and durability, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various electrical applications. With dimensions of 1250mm in height, 1000mm in width, and 320mm in depth, it features a robust construction reinforced with fiberglass, ensuring it meets the IK10 impact protection standard and IP44 ingress protection rating. The enclosure includes a ventilated canopy and an open bottom design, allowing for efficient airflow and easy access, while its solid front doors can be opened from both the right and left, providing flexibility in installation. Certified by Veritas and compliant with IEC standards, this enclosure is suitable for a wide range of environments and is designed to withstand ambient temperatures from -35°C to 90°C, making it a reliable choice for your electrical housing needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 1000 mm, 1000 mm
Enclosure Nominal Height1250 mm, 1250 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth
- Enclosure Mounting
- floor-standing
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hinges, rear panel by fixing element, canopy by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 94 kg CO2 eq., 93.91520058696965
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 187 kg CO2 eq., 187.0919014305031
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Opening Side
- right and left 180 °)
- Energy Efficiency Optimized
- False
- Lock Type

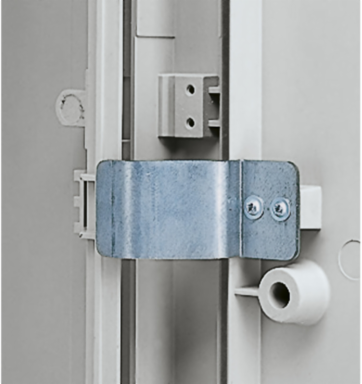

- 4 points lock, handle with 5 mm double bar insert
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Silicone Free
- Yes
- Door Type 1 Door Type
- Solid
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Spain, ES
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 6
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Materialpolyester reinforced with fibreglass
RangePanelSeT
Carbon Footprint Of The Distribution Phase A4102.24411820609043, 102 kg CO2 eq.
Carbon Footprint Of The Installation Phase A517.349035408534178, 17 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeopen top and bottom part assembled with side parts
Device Short NamePLAZT
Electrical Insulation Classclass II
Fire Resistance960 °C IEC 62208
Number Of Doors2
Product NamePanelSeT PLA
Software Versionv6.1
Total Lifecycle Carbon Footprint401 kg CO2 eq.
Warranty In Months18
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyVeritas
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 400.60025563209734
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
