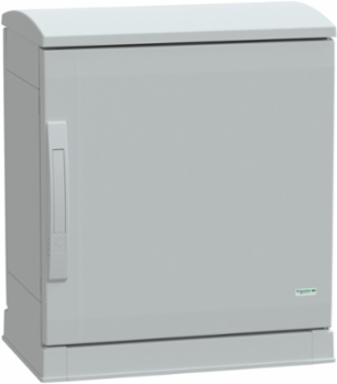

Schneider Electric NSYPLAZT553G Floor Standing Polyester Enclosure 500x500x320mm IP44 IK10
- MPN: NSYPLAZT553G
- PPN: SCH-NSYPLAZT553G
CAD
$1238.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

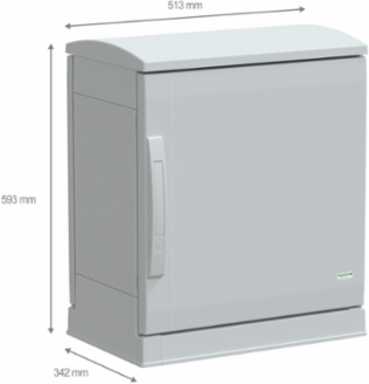

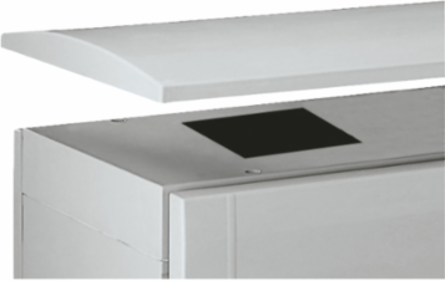

Designed for versatility and durability, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various applications. With dimensions of 500x500x320mm, it features a solid front door that is reversible for added convenience, while its open bottom and ventilated canopy ensure effective airflow. Constructed from fiberglass-reinforced polyester, this enclosure boasts an IP44 rating for protection against dust and water, as well as an IK10 rating, making it highly resistant to impacts. Compliant with IEC 62208 standards, it is suitable for a range of environments and applications, providing reliable electrical insulation and accessibility from multiple sides. Whether used for housing electrical equipment or as a general-purpose enclosure, this robust and practical unit is designed to meet the demands of modern installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 500 mm, 500 mm
Enclosure Nominal Height500 mm, 500 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
- Enclosure Mounting
- floor-standing
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hinges, rear panel by fixing element, canopy by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 33 kg CO2 eq., 32.82473030224182
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 65 kg CO2 eq., 65.39134418930205
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose

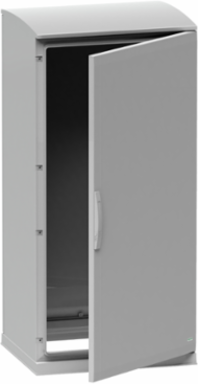

- Door Opening Side
- reversible 180 °)
- Energy Efficiency Optimized
- False
- Lock Type

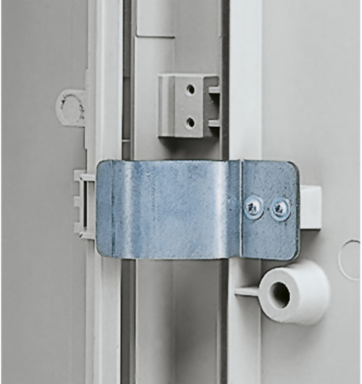

- 2 points handle lock, 5 mm double-bar
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- Veritas
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Materialpolyester reinforced with fibreglass
RangePanelSeT
Carbon Footprint Of The Distribution Phase A435.73580830504132, 36 kg CO2 eq.
Carbon Footprint Of The Installation Phase A56.0637405311381585, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeopen top and bottom part assembled with side parts
Device Short NamePLAZT
Electrical Insulation Classclass II
Fire Resistance960 °C IEC 62208
Number Of Doors1
Product NamePanelSeT PLA
Software Versionv6.1
Total Lifecycle Carbon Footprint140 kg CO2 eq.
Door Type 1 Door TypeSolid
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %6
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint140.01562332772335
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
