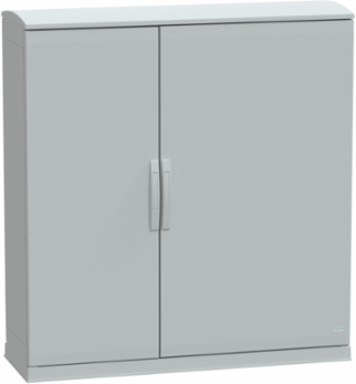

Schneider Electric NSYPLAZT12124G PanelSeT PLA Floor Standing Enclosure 1250x1250x420mm IP44 IK10
Schneider Electric NSYPLAZT12124G PanelSeT PLA Floor Standing Enclosure 1250x1250x420mm IP44 IK10
- MPN: NSYPLAZT12124G
- PPN: SCH-NSYPLAZT12124G
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3485.22/ EA
Description
Engineered for versatility and durability, the PanelSeT PLA floor-standing enclosure from Schneider Electric is an ideal solution for a variety of applications. With a robust design featuring a polyester reinforced with fiberglass, this enclosure offers a high level of protection with an IP44 rating and IK10 impact resistance, ensuring that your equipment remains safe in demanding environments. Measuring 1250x1250x420 mm, it provides ample space for housing electrical components while allowing for easy accessibility from multiple sides, thanks to its thoughtfully designed doors and ventilated canopy. This enclosure is not only built to withstand extreme temperatures ranging from -35°C to 90°C, but it also meets international standards, making it a reliable choice for your electrical housing needs.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=NSYPLA12124G_2D-Drawing&p_File_name=PLA12124-1250x1250x420.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000910_3D-CAD&p_File_name=MCADUE0000910_2D-top.dxf
Physical Attributes

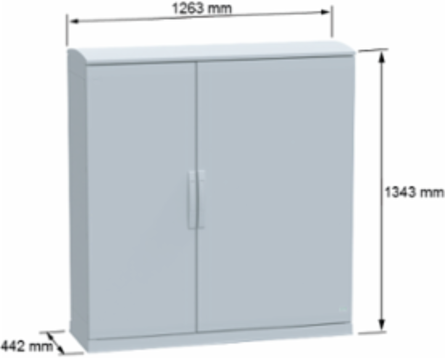

- Enclosure Nominal Height
- 1250 mm, 1250 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width1250 mm, 1250 mm
Conformance Attributes
- Product Certifications
- Veritas
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth
- Removable Parts
- door by hinges, rear panel by fixing element, canopy by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 117 kg CO2 eq., 116.7101521857487
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 233 kg CO2 eq., 232.50255711751842
- Medium Desc

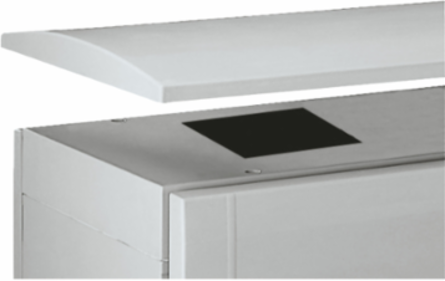

- Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1250x1250x420mm, IP44, IK10
- Local Publishable Date
- 2025-09-16
- Return Indicator
- N
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Body Type
- open top and bottom part assembled with side parts
- Device Short Name
- PLAZT
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type

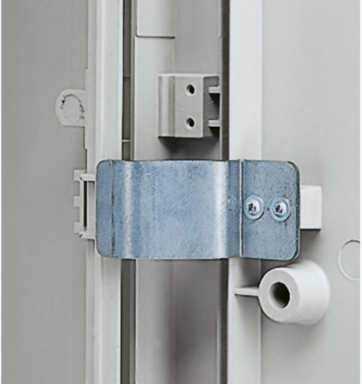

- 4 points lock, handle with 5 mm double bar insert
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Door Type 1 Door Type
- Solid
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Spain, ES
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Carbon Footprint Of The Distribution Phase A4127.06065175125802, 127 kg CO2 eq.
Carbon Footprint Of The Installation Phase A521.559966332935677, 22 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
Without Single Use PlasticNo
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 180 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product NamePanelSeT PLA
RangePanelSeT
Software Versionv6.1
Total Lifecycle Carbon Footprint498 kg CO2 eq.
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 497.8333273874608
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-35-90 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
