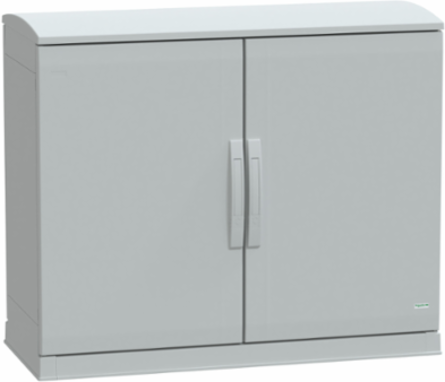

Schneider Electric NSYPLAZT7104G Floor Standing Polyester Enclosure 750x1000x420 mm IP44 IK10
Schneider Electric NSYPLAZT7104G Floor Standing Polyester Enclosure 750x1000x420 mm IP44 IK10
- MPN: NSYPLAZT7104G
- PPN: SCH-NSYPLAZT7104G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2259.00/ EA
Description
Designed for versatility and durability, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various electrical applications. With a robust construction that includes a solid front door and an open bottom design, it ensures effective ventilation while maintaining an IP44 rating for protection against dust and water. Measuring 750 mm in height, 1000 mm in width, and 420 mm in depth, this enclosure is crafted from polyester reinforced with fiberglass, providing excellent resilience and a high IK10 impact protection rating. Its thoughtful design features a dual-point handle lock for enhanced security and accessibility from multiple sides, making it a reliable choice for environments requiring robust electrical housing.
Features
- Versatile and durable floor-standing enclosure for various applications.

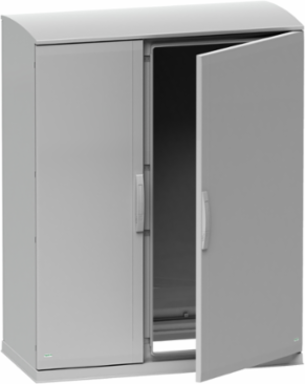

- Easy access with 180° opening doors from either side.

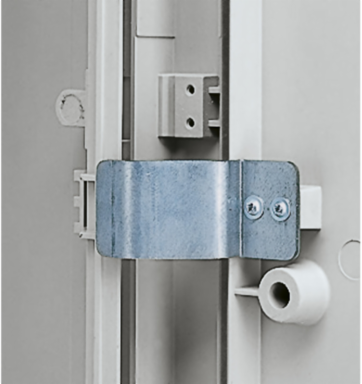

- Two-point handle locks with 5mm double-bar inserts for added security.
- Robust protection against fire, impact, dust, and water.
- Withstands fire up to 960°C in accordance with standards.
- High resistance to impacts and rated IP44 for dust and water protection.
- Class II electrical insulation to prevent electric shocks.
- Can be stored in a wide range of ambient air temperatures (-35°C to 90°C).
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 1000 mm
Enclosure Nominal Height750 mm
Conformance Attributes
- Product Certifications
- Veritas
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 canopy, 1 plinth
- Carbon Footprint Of The Distribution Phase A4
- 85.36887539537648, 85 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 14.485602379941158, 14 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Opening Side
- right and left 180 °)
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 2 points handle lock, 5 mm double-bar
- Package Weight Lbs
- 43.000 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 334 kg CO2 eq.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Product Name
- PanelSeT PLA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hinges, rear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C478 kg CO2 eq., 78.4146334997999
Carbon Footprint Of The Manufacturing Phase A1 To A3156 kg CO2 eq., 156.21265556333267
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typeopen top and bottom part assembled with side parts
Device Short NamePLAZT
Door TypeSolid front
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo

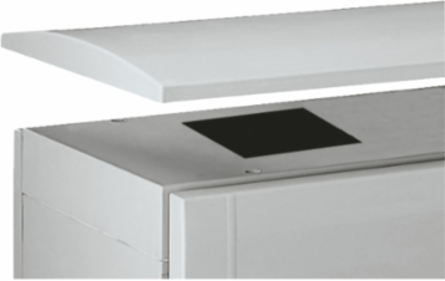

Medium DescFloor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x1000x420mm, IP44, IK10
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Spain, ES
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 334.4817668384502
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-35-90 °C
IP Degree Of ProtectionIP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
