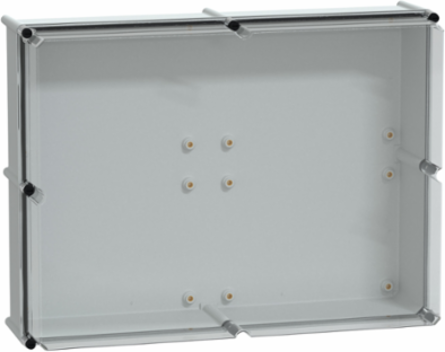

Schneider Electric NSYPLS5472AG PLS Insulating Modular Box, 54x72x23cm, IP66, High Transparent Cover

  • MPN: NSYPLS5472AG
  • PPN: SCH-NSYPLS5472AG
  • UNSPSC: 39121324

CAD

$412.65

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

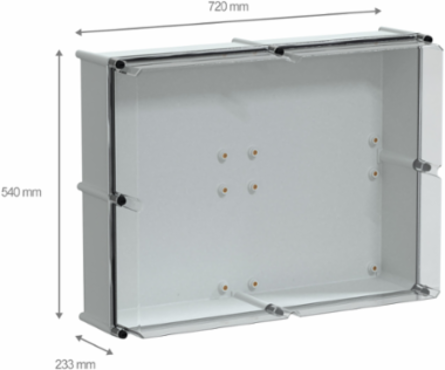

Thalassa PLS box polyester rear with transparent PC cover. 540 x 720 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Features

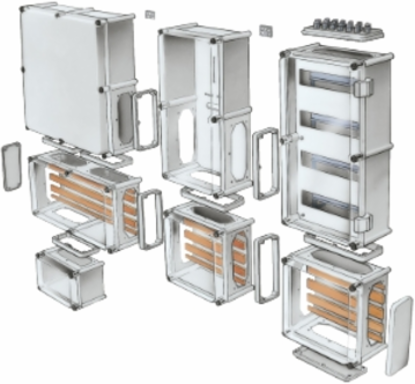

  • Modular design allowing flexible configuration
  • Ideal for scalable industrial installations
  • Robust protection against dust, water and harsh industrial conditions
  • Class II electrical insulation for safe operation
  • Transparent polycarbonate cover offering visibility and protection

Documentation & Downloads

Specifications

Key Specifications

Country of OriginSpain
Weight7910 g

Physical Attributes

Colorbody Gray RAL 7035)
Enclosure Nominal Width720 mm
Enclosure Nominal Height540 mm

Important Information Attributes

Persona Type IdsLC, OM, OM8, PB, SI
Market Segmentation IdCOMMERCIAL, INDUSTRIAL

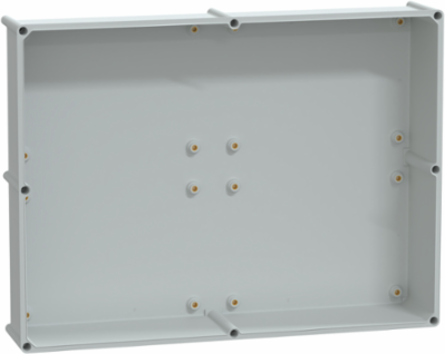

Device Composition1 cover on enclosure, 1 rear part on enclosure, locking screws
Carbon Footprint Of The End Of Life Phase C1 To C417 kg CO2 eq., 17.003111816814936
Carbon Footprint Of The Manufacturing Phase A1 To A346 kg CO2 eq., 46.300597070379624
Local Data StatusPublishable
Return IndicatorN
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Typeslot screw
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeinsulating modular box
Removable Partscover locking screw
Software Versionv6.1
Total Lifecycle Carbon Footprint80 kg CO2 eq.
Database Version2023-02
Certificate AgencyUL
Customs Code3926909985
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Recyclability Potential In %4
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A415.703902427382044, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.0310564620931033, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
Local Publishable Date2025-12-09
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2051
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeone piece moulded
Device Short NamePLS
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
MaterialCover polycarbonaterear polyester reinforced with fibreglass
Product NamePanelSeT PLS
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Front Coverhigh transparent cover
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20

Environment Attributes Main

Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1107004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint80.03866777666971
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Typeinsulating modular box

ETIM

ETIM 8EC000058
ETIM 10EC000058
ETIM 9EC000058

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
