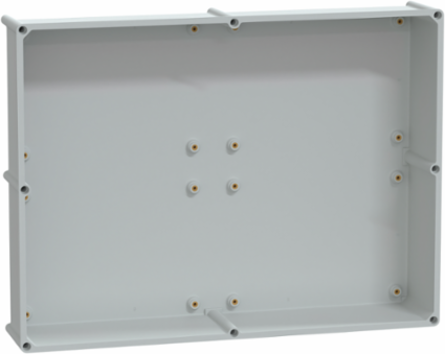

Schneider Electric NSYFPLS5472G PanelSeT PLS Polyester Rear Enclosure 54x72x13.5 cm, IP66, Fire Resistant to 960 °C
Schneider Electric NSYFPLS5472G PanelSeT PLS Polyester Rear Enclosure 54x72x13.5 cm, IP66, Fire Resistant to 960 °C
- MPN: NSYFPLS5472G
- PPN: SCH-NSYFPLS5472G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$173.91/ EA
Description
The polyester rear part of the PLS box, designed by Schneider Electric, exemplifies robust construction and versatility for various applications. With dimensions of 54x72x13.5 cm, this one-piece molded enclosure is wall-mounted and offers exceptional durability, featuring an IP66 rating for protection against dust and water ingress. It is crafted from fiberglass-reinforced polyester, ensuring resilience against harsh environmental conditions, and is certified for fire resistance up to 960 °C, making it suitable for demanding industrial settings. This rear part is part of the Thalassa range, providing a reliable solution for multi-purpose electrical installations while adhering to stringent standards such as IEC 62208 and NEMA classifications.
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 720 mm
Enclosure Nominal Height540 mm
Conformance Attributes
- Standards
- IEC 62208, NEMA 4X, NEMA classification 13
Product CertificationsUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Body Type
- one piece moulded
- Device Composition
- 1 rear part on enclosure
- Electrical Insulation Class
- class II
- Fire Resistance
- 960 °C IEC 62208
- Package Weight Lbs
- 3.850 kg
- Product Or Component Type
- insulating modular rear
- Returnability
- No
- Type Of Front Cover
- without
- Stocking Flag
- Y
- Pep Code
- ENVPEP1107004EN
- Product Name
- PanelSeT PLS
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-12-11
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Device Short NamePLS
Enclosure Mountingwall mounted
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Medium DescPolyester rear part of PLS box 54x72x13.5cm
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -30-70 °C
- IP Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- insulating modular rear
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
