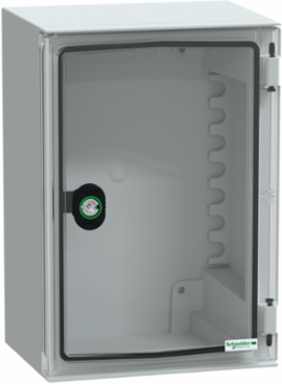

Schneider Electric NSYPLM32TG Thalassa PLM Wall Mounted Enclosure, 310x215x160mm, IP66, IK10
- MPN: NSYPLM32TG
- PPN: SCH-NSYPLM32TG
CAD
$200.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Thalassa PLM wall-mounting ABS/PC enclosure monobloc w/transparent door. 310 x 215 x 160 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 1 lock (3 mm double-bar lock). Accessible front. ABS + PC material, Polycarbonate door. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, Hungary
Physical Attributes
- Enclosure Nominal Height
- 310 mm, 310 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width215 mm, 215 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door, 1 lock
- Carbon Footprint Of The Distribution Phase [A4]
- 2.9382775717478395, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3533336665881801, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-10-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2041
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Type
- transparent
- Enclosure Mounting
- wall mounted
- Fire Resistance
- 960 °C IEC 62208
- Material
- door polycarbonatebody ABS + PC
- Number Of Locks
- 1
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hinges
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Spain, ES
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 5
- Package Weight(Lbs)
- 1.480 kg
- Take-back
- No
- Customs Code
- 9403704031
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyNEMA classification 13, NEMA classification 4X, IEC 62208
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.010895037639409
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.87970048679446
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NamePLM
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Type3 mm double-bar lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP1101018EN
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 12.182206762769887
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Environmental DisclosureENVPEP1101018EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1101018EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
