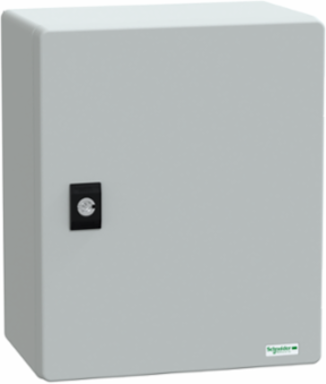

Schneider Electric NSYPLM3025G Thalassa PLM Wall Mounted Polyester Enclosure 308x255x160mm IP66 IK10

MPN: NSYPLM3025G
PPN: SCH-NSYPLM3025G
UNSPSC: 39121303

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$221.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

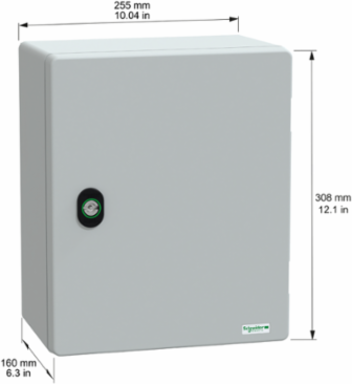

Thalassa PLM wall-mounting polyester enclosure monobloc. 308 x 255 x 160 mm. Single piece body. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Features

Ideal for harsh environment
Total electrical insulation (Class II) to avoid electric risks
Large door opening (180º)
High protection against dust and water (NEMA 4X)
Hard impact resistance (IK10)
Can be used in a large temperature range (-40 °C to 80 °C)
Self-extinguishing and halogen free
Large number of accessories available

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, United States

Weight	3128 g

Physical Attributes

Enclosure Nominal Height	308 mm, 308 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	255 mm, 255 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 body, 1 door, 1 lock
Carbon Footprint Of The End Of Life Phase C1 To C4	6 kg CO2 eq., 6.36356734982167
Carbon Footprint Of The Manufacturing Phase A1 To A3	11 kg CO2 eq., 11.057369545190145
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Type	Solid
Enclosure Mounting	wall mounted
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Number Of Locks	1
Product Or Component Type	compact enclosure
Removable Parts	door by hinges
Software Version	v6.1
Total Lifecycle Carbon Footprint	24 kg CO2 eq.
Database Version	2023-02
Certificate Agency	UL
Customs Code	9403704031
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	6.210089354342732, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.7467754791133969, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2024-01-26
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2041
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Plastic Content	37 %
Device Short Name	PLM
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	3 mm double-bar lock
Mounting Plate Description	without mounting plate
Product Availability	Stock - Normally stocked in distribution facility
Range	PanelSeT
Returnability	Yes
Sustainable Packaging	No
Material 5 Material	polyester reinforced with fibreglass
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit

Environment Attributes Main

Ambient Air Temperature For Operation	-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	24.377801728467944
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Environmental Disclosure	ENVPEP2405006EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2405006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
