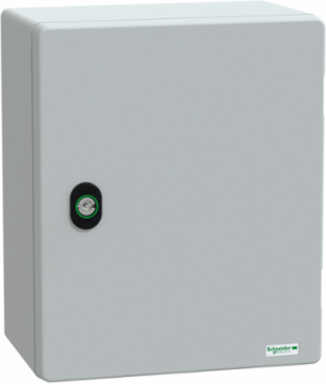

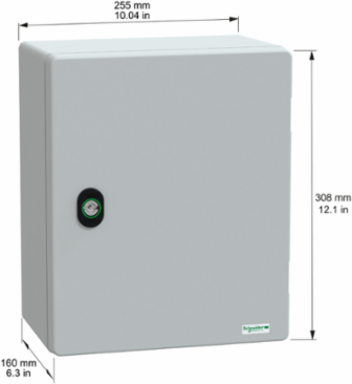

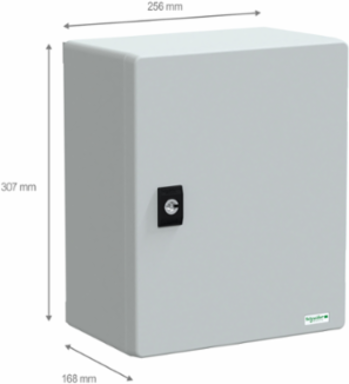

Schneider Electric NSYPLM3025PG Wall-Mounted Polyester Enclosure, 308x255x160mm, IP66, IK10, RAL 7035
- MPN: NSYPLM3025PG
- PPN: SCH-NSYPLM3025PG
CAD
$285.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for durability and versatility, this wall-mounted polyester enclosure from Schneider Electric is an ideal solution for a variety of applications. With a robust construction that includes a solid door and a metallic mounting plate, it offers exceptional protection rated at IP66 and IK10, ensuring reliability in challenging environments. Measuring 308x255x160mm, this enclosure can withstand ambient temperatures from -40 C to 80 C and is built from polyester reinforced with fiberglass, providing both strength and resistance to fire up to 960 C. The sleek gray finish (RAL 7035) not only enhances its aesthetic appeal but also integrates seamlessly into any setting, making it a practical choice for those seeking both functionality and style.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 308 mm, 308 mm
- Enclosure Nominal Width
- 255 mm
ColorGray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door, 1 mounting plate, 1 lock
- Carbon Footprint Of The Distribution Phase [A4]
- 7.361576510838507, 7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8852440781817378, 0.9 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2041
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 37 %
- Device Short Name
- PLM
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 3 mm double-bar lock
- Mounting Plate Description
- plain steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2405006EN
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition 181 body, 1 door, 1 mounting plate, 1 lock
Carbon Footprint Of The End-of-life Phase [C1 To C4]8 kg CO2 eq., 7.543512702410087
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 13.107649064438956
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door TypeSolid
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Number Of Locks1
Product Or Component Typecompact enclosure
Removable Partsdoor by hingesmounting plate by fixing element
Software Versionv6.1
Total Lifecycle Carbon Footprint29 kg CO2 eq.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyUL
Package Weight(Lbs)3.708 kg
Take-backNo
Customs Code9403704031
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 28.89798235586929
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Environmental DisclosureENVPEP2405006EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2405006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
