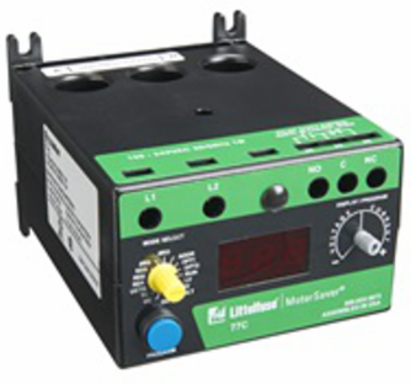

Littelfuse 77C-LR 77C-LR - 777/77C Series
- MPN: 77C-LR
- UPC: 079458991215
- PPN: LTF-77C-LR
CAD
$725.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
All of the overload relays provide unsurpassed protection by combining overload, underload, and voltage in one package. For standalone applications, the units incorporate a 3-digit LED display that is used for programming, providing real-time operational information and displaying diagnostic codes to aid in troubleshooting a fault condition. The units also feature a communications port that can be used with communication modules listed in the 777 accessories section to form a Modbus, DeviceNet™, Profibus, or Ethernet network. Up to 99 units can be remotely monitored and controlled from a PC, PLC, or SCADA system, and data logging through a PC with the optional Solutions software. This capability allows for a simple, cost-effective way to meet new requirements for arc-flash safety.
Specifications
Key Specifications
- Input Voltage (V)
- 100 to 240VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Load Rating (VA)
- Pilot Duty: 480VA @ 240VAC B300; General Purpose: 10A @ 240VAC
- Timing Accuracy (%)
- 5% ± 1s
- Restart Delay Range
- After Under/Overcurrent: 2 - 500m/s; # of Restarts: Overcurrent: 0 1 oc1 2 oc2 3 oc3 4 oc4 A (Automatic) OCA; Undercurrent: 0 1 2 3 4 A (Automatic)
- Overvoltage Trip Voltage (%)
- 85V - HV setting
- Voltage Accuracy (%)
- ±1%
- Overcurrent Trip Class
- 5 J5 10 J10 15 J15 20 J20 30 J30 or Lin (linear)
- Undercurrent Trip Delay (s)
- 2 - 60s
- Ground Fault Accuracy (%)
- ±15%
- Short Circuit (kA)
- 100kA per UL 10kA per CSA
- Protection Class
- IP20 NEMA 1
- CT Ratio
- 1 or 2
- Life
- Electrical: 1 x 105 operations at rated load; Mechanical: 1 x 106
- Mounting Method
- Surface mount (4 - #8 screws) on DIN rail mount
- Storage Temperature (F/C)
- -40° to 80°C (-40° to 176°F)
- Dimensions
- 3.05 H x 3.85 W x 5.05 D in. (77.5 x 97.8 x 128.3 mm)
Maximum Input Power10W
Output FormSPDT - Form C
Full Load Amp Range (A)1.0 - 2.5A (loos required); 2.0 - 9.0A (direct)
Rapid Cycle Timer (s)0 2 - 500s
Repeat Accuracy (%)Voltage: ±0.5% of nominal voltage; Current: ±1% (direct no external CTs)
Undervoltage Trip VoltageLV setting - 264V
Overcurrent Trip Point(20A - 100A) … MULT of 80 - 120% of CT primary
Undercurrent Trip Point(0 10 - 98 Amps) … MULT or 40 - 100% of CT primary
Current Accuracy (%)±3% (<100 amps direct)
Sensor Hole SizeMax conductor size: 0.65 in (with insulation)
Surge ProtectionIEC: 61000-4-5 Level 3 2kV line-to-line; Level 4 4kV line-to-ground
Pollution Degree3
AddressA01 - A99
Termination Type7 in.-lbs.
Operating Temperature-20° to 70°C (-4° to 158°F)
Humidity10-95% non-condensing per IEC 68-2-3
Weight (lbs/g)1.20 lbs (19.2 oz. 544.3 g)
