Schneider Electric LR9D02 TeSys LRD Electronic Overload Relay 0.4-2A, IP20, 6kV Rated Impulse

  • MPN: LR9D02
  • PPN: SCH-LR9D02
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $231.05

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

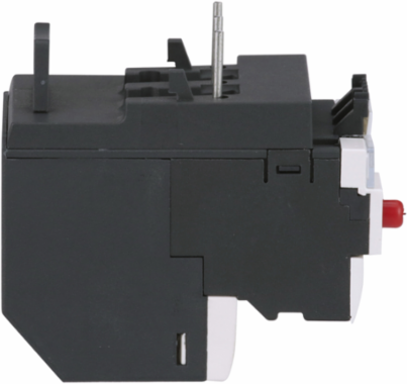

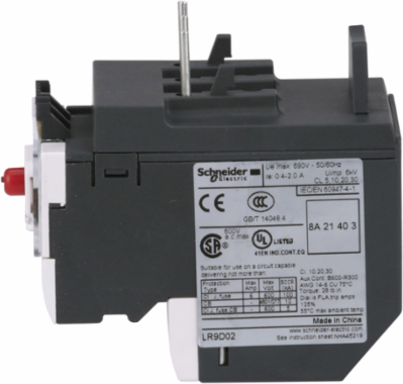

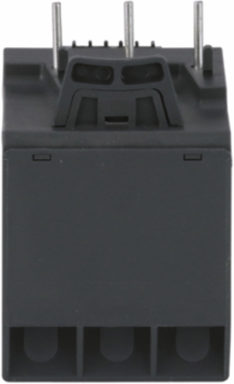

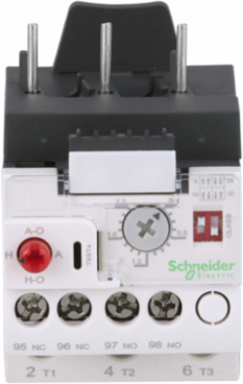

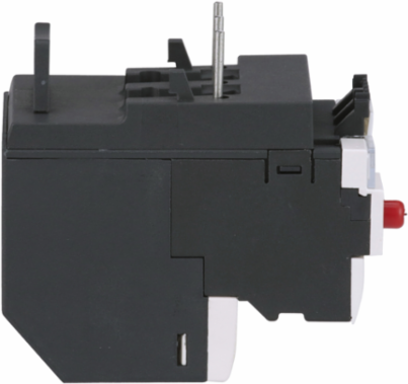

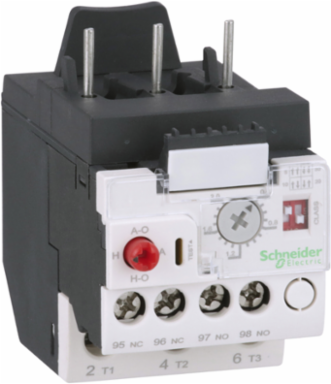

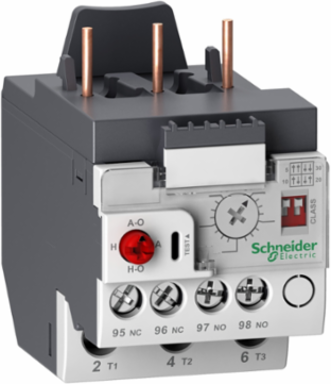

    TeSys LR9D electronic overload relay, 2A/690V, thermal setting range 0.4-2A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.12-0.75kW at 400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), RoHs/Reach.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United States
    Depth79.9 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Associated Fuse Rating
    5 A gG for signalling circuit, 5 A BS for signalling circuit
    Electromagnetic Compatibility
    surge withstand 2 kV common mode IEC 61000-4-5, resistance to electrostatic discharge 8 kV IEC 61000-4-2, immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3, immunity to fast transients 2 kV IEC 61000-4-4
    Mounting Support
    under contactor, plate, with specific accessories, rail, with specific accessories
    Certificate Agency
    IECEE CB Scheme, UL, CSA, CCC
    [Ui] Rated Insulation Voltage
    power circuit 1000 V, signalling circuit 690 V
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2020
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Device Short Name
    LR9D
    Energy Efficiency Optimized
    False
    Power Consumption In W
    300 mW
    Product Name
    TeSys LRD
    Range
    TeSys
    Returnability
    Yes
    Thermal Overload Class
    class 5…30
    Time Range
    1.5...4 min - automatic reset time
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    [Uimp] Rated Impulse Withstand Voltage
    6 kV
    Package Weight(Lbs)
    211.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Control TypeRed push-button stop and manual reset, White 2 microswitches adjustable trip class, Red knob automatic reset, White dial full-load current adjustment
    Mechanical Robustnessvibrations 10...150 Hz6 Gn IEC 60068-2-6, shocks 11 ms15 gn IEC 60068-2-7
    Tightening Torquecontrol circuit 0.8 N.m screw clamp terminals, power circuit 3.1 N.m screw clamp terminals
    [Ue] Rated Operational Voltage690 V power circuit, 660 V signalling circuit
    Connections - Terminalscontrol circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end, power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeRelay, Control & Measurement - Protection relay
    TraceabilityNo
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Dielectric Strength6 kV 50 Hz IEC 60255-5
    Phase Failure Sensitivityphase difference > 40% 3-3 s IEC 60947-4-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeelectronic thermal overload relay
    Relay Applicationmotor protection
    Sustainable PackagingNo
    Thermal Protection Adjustment Range0.4-2 A
    Tripping Threshold1.25 In IEC 60947-4-1
    Height Nominal72.5 mm
    [Ith] Conventional Free Air Thermal Current5 A signalling circuit
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Ambient Air Temperature For Storage
    -55-80 °C, -55-80 °C
    Take Back
    No
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20 front face IEC 60529
    Packaging Made With Recycled Cardboard
    No
    Ambient Air Temperature For Operation-25-70 °C IEC 60255-8, -25-70 °C IEC 60255-8-25-70 °C IEC 60255-8, -25-70 °C IEC 60255-8
    Product CompatibilityLC1D25, LC1D09, LC1D32, LC1D38, LC1D18, LC1D12
    Recycled Metal Content At Cr Level0 %
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m) without derating
    Packaging Without Single Use PlasticNo
