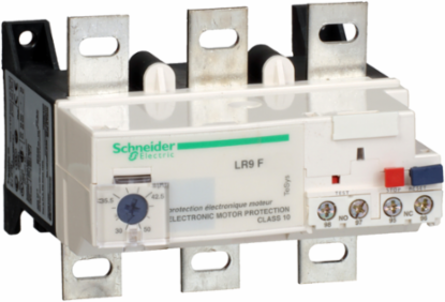

Schneider Electric LR9F5363 TeSys LRF Electronic Thermal Overload Relay 48-80A Class 10
- MPN: LR9F5363
- PPN: SCH-LR9F5363
CAD
$578.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LR9F electronic overload relay, thermal setting range 48-80A, class 10, for protection of motors 30-37kW@400V. to be mounted directly below a TeSys F 3-pole contactor LC1 F115, F150, F185, use of a support mounting plate LA7F901 is recommended (to be ordered separately). Motor protection includes thermal overload of 1-phase and 3-phase motors, phase failure, phase unbalance, prolonged starting times, stalled rotor conditions. On the front of the relay, it provides a thermal adjustement dial, buttons for test, stop & reset, a trip indicator, trip auxiliary contacts 1NO+1NC. Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth123.5 mm
Complementary Attributes
- Maximum Voltage Drop
- <2.5 V closed state, <2.5 V closed state<2.5 V closed state, <2.5 V closed state
Rated Power In W100 VA 24 V AC, 100 W 24 V DC, 100 W 48 V DC, 200 VA 48 V AC25 W 440 V DC400 VA 110 V AC45 W 220 V DC, 50 W 110 V DC, 600 VA 220 V AC, 600 VA 380 V AC, 600 VA 600 V AC
Important Information Attributes
- Control Type
- dial White full-load current adjustmenttest button Redpush-button Red reset, push-button stop
- Electromagnetic Compatibility
- resistance to electrostatic discharge 6 kV in indirect mode IEC 61000-4-2resistance to electrostatic discharge 8 kV in air IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test 10 V/m IEC 61000-4-3, fast transients immunity test 2 kV IEC 61000-4-4
- Temperature Compensation
- -20-70 °C, -20-70 °C
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible - without cable end, control circuit screw clamp terminals 2 1-1 mm² solidcontrol circuit screw clamp terminals 1 0.75-2.5 mm² flexible - with cable end, control circuit screw clamp terminals 1 0.75-2.5 mm² solid, control circuit screw clamp terminals 1 0.75-4 mm² flexible - without cable endcontrol circuit screw clamp terminals 2 1-1.5 mm² flexible - with cable end, power circuit lugs-ring terminals M8
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.664811934965841
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.373067856057913
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2212018
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Kit Identifier
- N
- Contacts Type And Composition
- 1 NO + 1 NC
- Dielectric Strength
- 6 kV 50 Hz IEC 255-5
- Local Signalling
- trip indicator
- Network Frequency
- 50/60 Hz
- Phase Failure Sensitivity
- tripping in 4 s +/- 20 % IEC 60947-4-1
- Product Name
- TeSys LRF
- Protective Treatment
- TH
- Relay Application
- motor protection
- Returnability
- Yes
- Sustainable Packaging
- No
- Thermal Overload Class
- class 10 IEC 60947-4
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminalspower circuit 18 N.m screw clamp terminals
- Tripping Threshold
- 1.12 +/- 0.06 In tripping IEC 60947-4-1
- Pep Code
- ENVPEP2212018EN
- Pep Verification Date
- 2025-06-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 96 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A control circuit
- [Ui] Rated Insulation Voltage
- power circuit 1000 V AC IEC 60947-4
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Current Consumption<= 5 mA no-load, <= 5 mA no-load<= 5 mA no-load, <= 5 mA no-load
Mounting Supportdirect on contactor, plate
Certificate AgencyCSA, UL, UKCA
Carbon Footprint Of The Distribution Phase [A4]0.5985198819621839, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.11462867527126852, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 126.69793890788517
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1001
China Rohs In ScopeNo
Compatibility CodeLR9F
Device Short NameLR9F
Fire Resistance850 °C IEC 60695-2-1
Mechanical Robustnessshocks13 Gn for 11 ms IEC 60068-2-7vibrations 5...300 Hz2 GN IEC 60068-2-6
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeelectronic thermal overload relay
RangeTeSys
Resetmanual reset on front relay
Software Versionv6.1
Switching Capacity In Ma0...150 mA
Thermal Protection Adjustment Range48-80 A
Total Lifecycle Carbon Footprint133 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LR9F7375 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %92
Width Nominal115 mm
[Ue] Rated Operational Voltage1000 V AC 50/60 Hz power circuit VDE 0110 group C
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-1
Package Weight(Lbs)878.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- <= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 133.4489672561424
- Environmental Disclosure
- ENVPEP2212018EN
- Product Compatibility
- LC1F115...LC1F185
- Pep Code
- ENVPEP2212018EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-55 °C IEC 60255-8, -20-55 °C IEC 60255-8-20-55 °C IEC 60255-8, -20-55 °C IEC 60255-8
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP20 conforming to VDE 0106
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2212018
Eu Rohs DirectiveCompliant By Exemption
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- electronic thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Surge Protection And Filtering Attributes
- Surge Withstand
- 4 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
