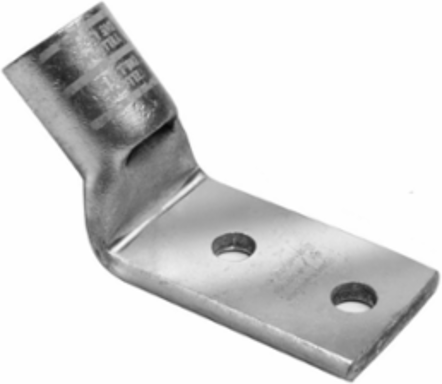

Burndy YA8CL2TC14E145 8 AWG Copper Terminal, 2 Hole, 1/4 Stud, 1 Inch Spacing, 45 Degree Angle, Tin Plated
- MPN: YA8CL2TC14E145
- UPC: 781810019108
- PPN: BUR-50234X
- UNSPSC: 39121405
CAD
$20.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8 AWG CU, Two Hole, 1/4 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Red Color Code, 49 Die Index.
Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Additional
| Voltage Rating | 35 kV |
|---|---|
| Wire Size | 8 AWG |
| Stud Size | 1/4 in |
| Hole Spacing | 1 in |
| Strip Length | 1/2 in |
| Overall Dimension N | 0.31 in |
| Material | Copper |
| Barrel Style | Chamfered, Standard |
| Tongue Angle | 45 Degree |
| UL Listed | Yes |
| RoHS Compliance Status | CM |
| Country of Origin | US |
| Temperature Rating | 906C (1946F) |
|---|---|
| Number of Holes | 2 |
| Hole Size | 0.27 in (6.9 mm) |
| Pad Width | 0.44 in |
| Overall Dimension D | 1.65 in |
| Overall Dimension Z | 0.34 in |
| Plating | Tin Plated |
| Tongue Type | Standard |
| Standards | UL 486A-486B |
| CSA Approved | Yes |
| Certification Agency | Prop 65 Compliant |
| Type | Standard Barrel, Tin Plated |
