Greenlee 881GXDE980MBTS 881 Cam-Track Hydraulic Bender for 2-1/2", 3", 4" Conduit, 2100W
- MPN: 881GXDE980MBTS
- UPC: 783310891857
- PPN: GRN-881GXDE980MBTS
- UNSPSC: 27121807
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

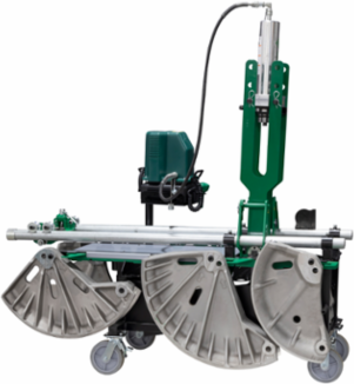

881 Cam-Track Hydraulic Bender for 2-1/2", 3", 4" Conduit, 2100W
Features

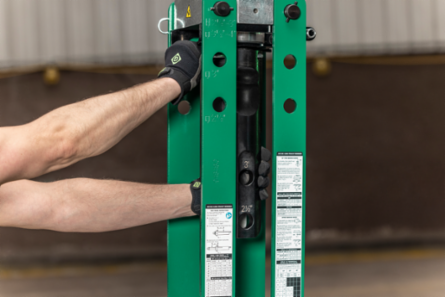

- Easier & Faster Setup - Extended yoke and spring pins deliver up to 6x faster changeover.
- Reduce Strain & Fatigue - Up to 50% lighter follow bars make for easier operation.

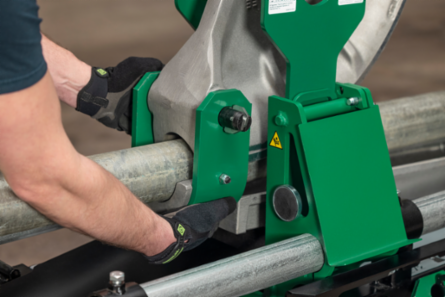

- Added Security - Locking features secure all shoes and accessories.
- Ergonomic Storage - All accessories stored in ergonomic lifting positions.
- Optimal Accessibility - Dedicated storage and labeling system.
- Enhanced Mobility - Fits through standard width doors 32" wide, riased fork pockets for better balance, and dedicated strapping points for securing in trailer.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 80 IN / 2032 MM
- Weight
- 1001 LB / 453.96825 KG
- Max Operating Temperature
- 125 F / 51.66667 C
- Shape
- Irregular
- Power
- AC
- Capacity Min
- 2.5 IN / 63.5 MM
- Cord Length
- 7 FT / 2.1336 MT
- Capacity
- 2-1/2", 3", and 4" EMT, IMC, and Rigid conduit
- Overall Length
- 80
Width31.7 IN / 805.18 MM
Height56.8 IN / 1442.72 MM
Product Warranty12
ColorSilver, Green, Black
MaterialAluminum
Number of Handles0
Capacity Max4 IN / 101.6 MM
Brand NameGreenlee
Bending Angle0 to 90 degrees
Motor Information
- Type
- AC Induction Single Phase
- Wattage
- 2100
- Horsepower
- 1.5
Voltage120 VLT
Amperage18.399999999999999
RPM3600
Battery Information
- Included
- No
RequiredNo
