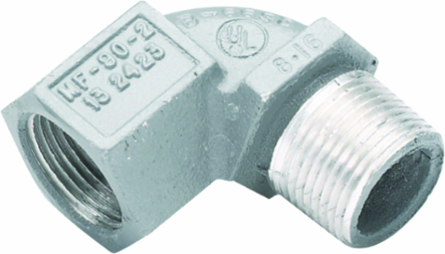

Killark MF-90-2-EX 90 Degree 3/4 Inch Aluminum Elbow, Male/Female, Quad Listed, 0.15 lb.
- MPN: MF-90-2-EX
- UPC: 783936071978
- PPN: HBL-MF-90-2-EX
- UNSPSC: 39131707
CAD
$186.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
90° 3/4" Aluminum Elbow, Male/Female, Quad Listed
Features
- Threaded for rigid conduit or IMC
- Smooth integral bushings to prevent damage to wires
- Certified QUAD listed
- Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- II2G;Ex d IIC
- Hub Size
- 3/4"
- Color
- Gray
- Special Features
- Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
- Weight
- 0.15 lb.
- Engineering Drawing 1 Display Text
- MF-90-2-EX Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ELBOW MF 90 3/4" AL QUAD LISTED
- Harmonization Code
- 7609000000
- Lead Time
- 10 wk
- Order Multiple
- 5 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.15
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- NAICS Code
- 3359323110
Dimensions3 in x 2 in x 3 in
Height3 in
ApplicationTo change direction in rigid or IMC conduit systems
Length3 in
Type90º Elbow
Width2 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesMF Series
BOX SIZE5.500x6.880x3.750 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936071978
Master Pack DescriptionEach
