Thomas & Betts K675LR-N-5400-CS871 900 AMP CONNECTOR
- MPN: K675LR-N-5400-CS871
- UPC: 783786325085
- PPN: T-B-K675LR-N-5400-CS871
- UNSPSC: 39121421
CAD
$1448.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

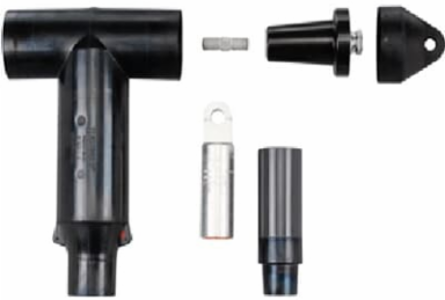

900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. With Any Customer Specific Modifications - CS871 - CSA Compatibility.
Features
- CSA Compatibility. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- 10.36 inch Wide x 13.00 inch from bottom to center of Bushing
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- All Weather Conditions, Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
StandardANSI/IEEE Standard 386
Conductor Range900 STR/COMPR kcmil , 1000 SOL/COMPT kcmil
Voltage Rating15 to 25 kV
Amperage Rating900 A
Temperature Rating-40 to +65 C
