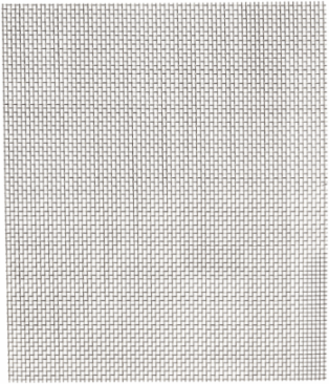

Schneider Electric NSYCAF104X95X Anti-mosquito filter in stainless steel for ref NSYCAG104x80LM
- MPN: NSYCAF104X95X
- PPN: SCH-NSYCAF104X95X
- UNSPSC: 39121324
CAD
$7.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Anti-mosquito filter from stainless steel 304 for ClimaSys CV enclosures. The product is to be mounted between enclosure and metal louvre. The external width is 98mm. The external height is 115mm. The filter is 0.6mm thick.
Features
- Stainless-steel 304L Ø 0.32 mm wire mesh, 1.07 mm, thickness 0.6 mm
- Ingress protection rating (according to IEC 60529): IP33
- Installation: Between the enclosure and the metal louvre
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 30 g |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.05945440597879782, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.008847006669528736, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-10 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Mounting Location | between enclosure and metal louvre |
| Product Name | ClimaSys CA |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | external: 98 mm |
| Accessory / Separate Part Destination | squared metal louvre plate 120 x 120 mm |
| Customs Code | 7314141000 |
| Functional Unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 8 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.05498277634388206 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.2 kg CO2 eq., 0.1691907235000928 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | stainless steel 304 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | filter |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Thickness | 0.6 mm |
| Database Version | 2024-01 |
| Height Nominal | external: 115 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 0.2924749124923014 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
General Attributes
| Product Or Component Type | filter |
|---|
ETIM
| ETIM 8 | EC002513 |
|---|---|
| ETIM 10 | EC002513 |
| ETIM 9 | EC002513 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
