nVent Hoffman A1084PHC PolyPro Type 4X, 10.12x8.12x4.38, Polyester
- MPN: A1084PHC
- UPC: 783510170745
- PPN: HOF-A1084PHC
- UNSPSC: 39121309
CAD
$179.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

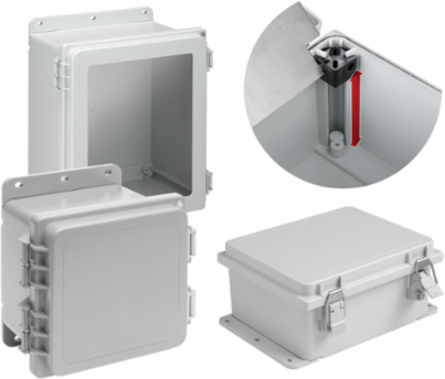

PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Type 4X, A1084PHC item measures 10.12x8.12x4.38 inches with a material of Polyester.
Features
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Optional cover screws included with all models
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| IP Rating | IP66 |
| Width | 8.12 in |
| Depth | 4.38 in |
| Weight | 3.5 lbs |
| Finish | RAL 7035 light-gray smooth matte textured inside and out |
| Cover Style | Solid |
| Window Material | Scratch-resistant polycarbonate |
| Chemical Resistance | Broad range of solvents, alkalis, acids |
| Impact Resistance | Excellent |
| Included Hardware | Two mounting feet, two latch assemblies, optional cover screws and hardware |
| Compliance | UL 508A Listed, cUL Listed per CSA C22.2 No 94, BABA Compliant |
| Product Family | PolyPro |
| Protection Rating | NEMA Type 12 |
|---|---|
| Size | 10.12 x 8.12 x 4.38 in |
| Height | 10.12 in |
| Thickness | 3.3 mm |
| Material | Polyester, non-glass-filled |
| Color | Light Gray, RAL 7035 |
| Seal Type | Overlapping tongue-and-groove raised cover and gasket |
| Type Rating | Type 4X |
| UV Resistance | Superior |
| Internal Features | Internal rail system and adjustable panel blocks for height and multiple panels |
| Modifications | Easy, dustless in-field using standard tools |
| Sub Brand | PolyPro |
