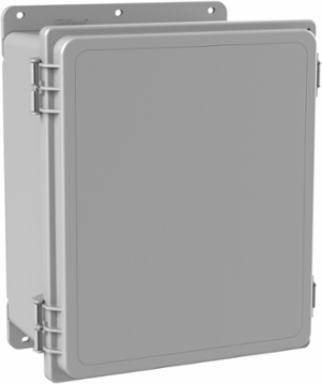

nVent Hoffman A12106PHC PolyPro Type 4X, 12.08x10.09x6.38, Polyester
- MPN: A12106PHC
- UPC: 783510170769
- PPN: HOF-A12106PHC
- UNSPSC: 39121309
CAD
$203.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Type 4X, A12106PHC item measures 12.08x10.09x6.38 inches with a material of Polyester.
Features
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Optional cover screws included with all models
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| Size | 12.08 x 10.08 x 6.35 in |
| Material | Polyester, Non-glass-filled |
| Seal Type | Overlapping tongue-and-groove raised cover with gasket |
| Cover Style | Solid removable snap-hinge with optional cover screws |
| Panel System | Internal rail system with adjustable panel blocks for multiple panels |
| Chemical Resistance | Resistant to solvents, alkalis, acids |
| Modifications | Easy, dustless in-field using standard tools |
| Product Family | PolyPro |
| IP Rating | IP66 |
|---|---|
| Weight | 5.8 lb |
| Finish | Smooth Matte, RAL 7035 light-gray textured inside and out |
| Color | Light Gray, RAL 7035 |
| Mounting | Molded-in embosses for rear panel mounting, two mounting feet included |
| Impact Resistance | Excellent |
| UV Resistance | Superior |
| Sub Brand | PolyPro |
| BABA | Yes, Compliant |
