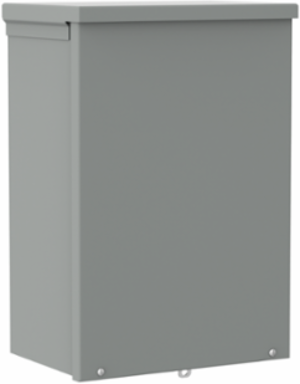

nVent Hoffman A10R106 Screw-Cover Drip-Shield Type 3R With Knockouts, 10x10x6, Gray, Steel
- MPN: A10R106
- UPC: 783510381202
- PPN: HOF-A10R106
- UNSPSC: 39121303
CAD
$108.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R With Knockouts, A10R106 item measures 10x10x6 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 254 |
| Protection Rating | NEMA Type 3R |
| Color | Gray |
| Body Thickness | 1.52 |
| Knockouts Included | Yes |
| NEMA Rating | 3R Weather-resistant, except dust |
| Body Style | A |
| IP Rating | IP32 |
| Material | Steel |
| Knockouts | Yes |
| Height (H) | 254 |
|---|---|
| Depth (D) | 152 |
| Finish | Galvanized |
| Color Code | ANSI 61 |
| Door Thickness | 1.52 |
| Knockout Pattern | C-D-E-F-G |
| Mounting (H) | 57 |
| Mounting (J) | 27 |
| Weight | 9 |
| Size | 10.00x10.00x6.00 in |
