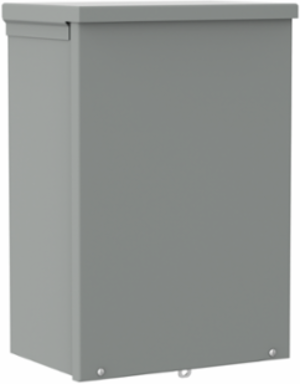

nVent Hoffman A36R2412NK Screw-Cover Drip-Shield Type 3R no Knockouts, 36x24x12, Gray, Steel
- MPN: A36R2412NK
- UPC: 783510582340
- PPN: HOF-A36R2412NK
- UNSPSC: 39121303
CAD
$869.54
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A36R2412NK item measures 36x24x12 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 610 |
| Protection Rating | NEMA Type 3R |
| Finish | Galvanized |
| Color Code | ANSI 61 |
| Door Thickness | 2.66 |
| NEMA Rating | 3R Weather-resistant, except dust |
| Body Style | C** |
| IP Rating | IP32 |
| Knockouts | No |
| Height (H) | 914 |
|---|---|
| Depth (D) | 305 |
| Material | Mild Steel |
| Color | Gray |
| Body Thickness | 2.66 |
| Knockouts Included | No |
| Mounting (H) | 330 |
| Mounting (J) | 38 |
| Weight | 87.92 |
