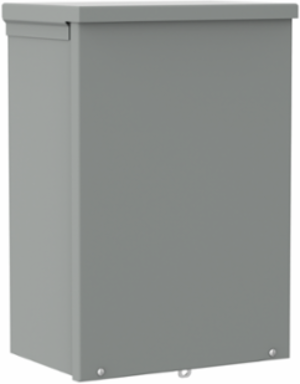

nVent Hoffman A18R1812NK Screw-Cover Drip-Shield Type 3R no Knockouts, 18x18x12, Gray, Steel
- MPN: A18R1812NK
- UPC: 783510582333
- PPN: HOF-A18R1812NK
- UNSPSC: 39121303
CAD
$371.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A18R1812NK item measures 18x18x12 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 457
- Protection Rating
- NEMA Type 3R
- Finish
- Galvanized
- Color Code
- ANSI 61
- Door Thickness
- 1.52
- NEMA Rating
- 3R Weather-resistant, except dust
- Body Style
- B
- IP Rating
- IP32
- Knockouts
- No
Height (H)457
Depth (D)305
MaterialMild Steel
ColorGray
Body Thickness1.52
Knockouts IncludedNo
Mounting (H)330
Mounting (J)28
Weight26.42
