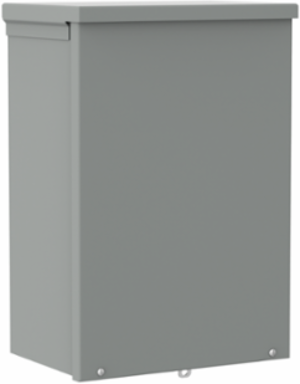

nVent Hoffman A10R84NK Screw-Cover Drip-Shield Type 3R no Knockouts, 10x8x4, Gray, Steel
nVent Hoffman A10R84NK Screw-Cover Drip-Shield Type 3R no Knockouts, 10x8x4, Gray, Steel
- MPN: A10R84NK
- UPC: 783510134853
- PPN: HOF-A10R84NK
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$85.29/ EA
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A10R84NK item measures 10x8x4 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 203
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 1.52
- Knockouts Included
- No
- Mounting (H)
- 57
- Mounting (J)
- 27
- Weight
- 6.2
- Size
- 10.00x8.00x4.00 in
Height (H)254
Depth (D)102
FinishGalvanized
Color CodeANSI 61
Door Thickness1.52
NEMA Rating3R Weather-resistant, except dust
Body StyleA
IP RatingIP32
MaterialSteel
KnockoutsNo
