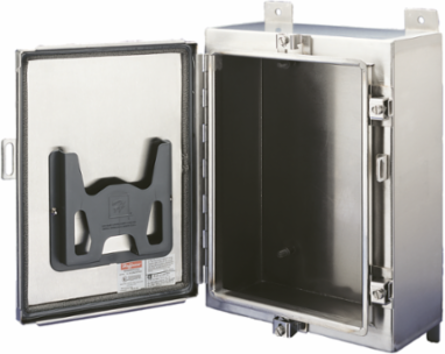

Nvent Hoffman A161206LPEMCSS Wallmount Hinged with Clamps EMC Type 4X, 16x12x6, Brushed, SS 304

Wallmount Hinged with Clamps EMC Type 4X, 16x12x6, Brushed, SS 304
  • MPN: A161206LPEMCSS
  • UPC: 783510258597
  • PPN: HOF-A161206LPEMCSS
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3021.85/ EA

Description

Type 4X SS Enclosures are ideal for shielding internal components from external interference. This Wallmount Hinged with Clamps EMC Type 4X, A161206LPEMCSS item measures 16x12x6 in. with a material of SS 304, Brushed.

Features

  • EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assemblies
  • Hasp and staple for padlocking
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Bonding provision on door; grounding stud on body

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
305
Protection Rating
NEMA Type 12
Thickness (T)
1.98
Clamp Quantity
4
Weight
21.2
Size
16.00x12.00x6.00 in
Height (H)406
Depth (D)152
FinishBrushed #4
Data PocketSmall
IP RatingIP66
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
