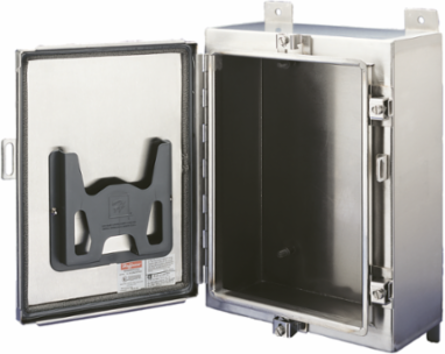

Nvent Hoffman A242006LPEMCSS Wallmount Hinged with Clamps EMC Type 4X, 24x20x6, Brushed, SS 304
Nvent Hoffman A242006LPEMCSS Wallmount Hinged with Clamps EMC Type 4X, 24x20x6, Brushed, SS 304
- MPN: A242006LPEMCSS
- UPC: 783510258795
- PPN: HOF-A242006LPEMCSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4438.00/ EA
Description
Type 4X SS Enclosures are ideal for shielding internal components from external interference. This Wallmount Hinged with Clamps EMC Type 4X, A242006LPEMCSS item measures 24x20x6 in. with a material of SS 304, Brushed.
Features
- EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assemblies
- Hasp and staple for padlocking
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on door; grounding stud on body
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 508
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.98
- Clamp Quantity
- 5
- Weight
- 39.6
- Size
- 24.00x20.00x6.00 in
Height (H)610
Depth (D)152
FinishBrushed #4
Data PocketSmall
IP RatingIP66
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
