nVent Hoffman

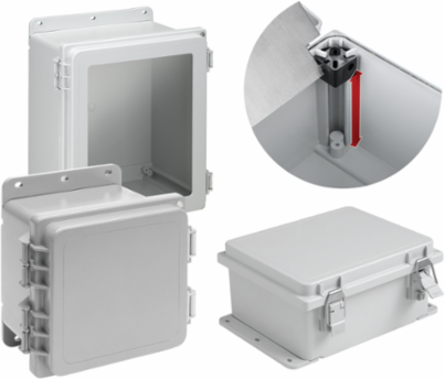

nVent Hoffman A16148PHC PolyPro Type 4X, 16.02x14.01x8.35, Polyester

PolyPro Type 4X, 16.02x14.01x8.35, Polyester
  • MPN: A16148PHC
  • UPC: 783510170783
  • PPN: HOF-A16148PHC
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$310.15/ EA

Description

PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Type 4X, A16148PHC item measures 16.02x14.01x8.35 inches with a material of Polyester.

Features

  • Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
  • Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
  • Resists cracking and provides excellent impact resistance
  • Lighter-weight than fiberglass
  • Recyclable
  • Easy, dustless in-field modifications using standard tools
  • Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
  • Removable snap-hinge cover allows for easy access to cover and body for modifications
  • Molded layout grid on inside of body and solid covers assists with component mounting
  • Molded-in embosses for rear panel mounting
  • Optional cover screws included with all models
  • Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
  • Scratch-resistant polycarbonate windows
  • Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
370
Protection Rating
NEMA Type 12
Finish
Smooth Matte
Color Code
RAL 7035
Cover Style
Solid
NEMA Rating
4X Watertight, corrosion-resistant
Sub Brand
PolyPro
Size
16.02x14.01x8.35 in
Height (H)421
Depth (D)212
Product FamilyPolyPro
ColorLight Gray
Thickness (T)3.3
IP RatingIP66
Weight9.9
MaterialPolyester

Downloads
