nVent Hoffman

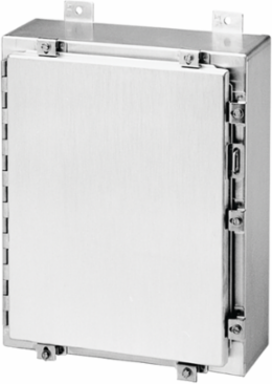

nVent Hoffman A24H2006ALLP Continuous Hinge Enclosure 24x20x6 Inch Type 4X, Aluminum, IP66

Continuous Hinge Enclosure 24x20x6 Inch Type 4X, Aluminum, IP66
  • MPN: A24H2006ALLP
  • UPC: 783510272906
  • PPN: HOF-A24H2006ALLP
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2119.38/ EA

Description

Clamped, continuous hinge enclosures are made of aluminum and great for outdoor applications. This Continuous Hinge Enclosure with Clamps LP Type 4X, A24H2006ALLP item measures 24x20x6 inches with a material of Aluminum.

Features

  • Lightweight, Type 4x hinged enclosure.
  • Seams continuously welded and ground smooth
  • Rolled lip around three sides of door and all sides of enclosure opening
  • Stainless steel door clamp assemblies
  • Door is easily removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Hasp and staple for padlocking
  • Tapped pads provided for mounting optional panels; panel screws are plated
  • Oil-resistant gasket
  • Enclosures are unpainted; door front has a smooth, brushed finish

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
508
Protection Rating
NEMA Type 12
Thickness (T)
2
Clamp Quantity
5
IP Rating
IP66
Material
Aluminum
NEMA Rating
4X Watertight, corrosion-resistant
Height (H)610
Depth (D)153
FinishBrushed
Panel Mounting Stud Quantity4
Data Pocket Size (D x E)152 x 152
Weight19
Size24.00x20.00x6.00 in
