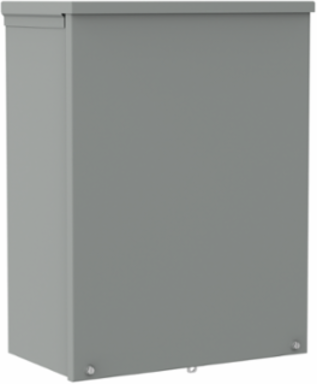

nVent Hoffman A24R168 Screw-Cover Drip-Shield Type 3R With Knockouts, 24x16x8, Gray, Steel
- MPN: A24R168
- UPC: 783510133962
- PPN: HOF-A24R168
- UNSPSC: 39121303
CAD
$374.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R With Knockouts, A24R168 item measures 24x16x8 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 406
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 1.52
- Knockouts Included
- Yes
- NEMA Rating
- 3R Weather-resistant, except dust
- Body Style
- B
- IP Rating
- IP32
- Material
- Steel
- Knockouts
- Yes
Height (H)610
Depth (D)203
FinishGalvanized
Color CodeANSI 61
Door Thickness1.52
Knockout PatternC-D-E-F-G
Mounting (H)330
Mounting (J)28
Weight31
Size24.00x16.00x8.00 in
