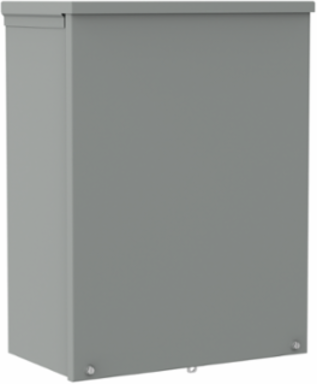

Nvent Hoffman A24R208NK Screw-Cover Drip-Shield Type 3R no Knockouts, 24x20x8, Gray, Steel
Nvent Hoffman A24R208NK Screw-Cover Drip-Shield Type 3R no Knockouts, 24x20x8, Gray, Steel
- MPN: A24R208NK
- UPC: 783510135188
- PPN: HOF-A24R208NK
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$428.62/ EA
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A24R208NK item measures 24x20x8 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 508
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 1.52
- Knockouts Included
- No
- Mounting (H)
- 330
- Mounting (J)
- 28
- Weight
- 38.5
- Size
- 24.00x20.00x8.00 in
Height (H)610
Depth (D)203
FinishGalvanized
Color CodeANSI 61
Door Thickness1.52
NEMA Rating3R Weather-resistant, except dust
Body StyleB
IP RatingIP32
MaterialSteel
KnockoutsNo
