Weidmuller 1547620000 Blue Feed-through Terminal Block, 2.5 mm², 24 A, 800 V, Push In
Weidmuller 1547620000 Blue Feed-through Terminal Block, 2.5 mm², 24 A, 800 V, Push In
- MPN: 1547620000
- PPN: WDM-1547620000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.12/ EA
Description

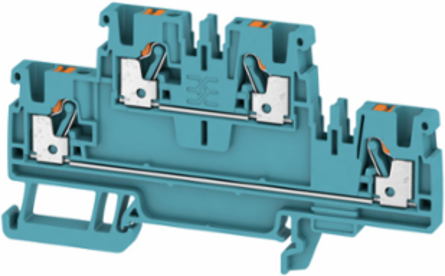

Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, blue
Specifications
Approvals
- Approvals
- CE, CSA, cURus, DNV GL, EAC, IECEXTUR, TUEVNATEX
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 90 mm
- Depth
- 50.5 mm
- Depth including DIN rail
- 51 mm
Width (inches)0.201 inch
Height (inches)3.543 inch
Depth (inches)1.988 inch
Net weight13.17 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Current size C (CSA)
- 20 A
- Voltage size B (CSA)
- 600 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 28 AWG
Current size B (CSA)20 A
Current size D (CSA)5 A
Voltage size C (CSA)600 V
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Installation advice
- Rail
- Snap-on
- No
- Type of mounting
- TS 35
Open sidesright
Type of fixingSnap-on
With snap-in pegsNo
Material Data
- Material
- Wemid
- Colour of operational elements
- orange
Colourblue
UL 94 flammability ratingV-0
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- End cover plate required
- Yes
- Number of levels
- 2
- PE connection
- No
- N-function
- No
- PEN function
- No
Number of potentials2
Number of clamping points per level2
RailTS 35
PE functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV16ATEX7909U
- Max. voltage (ATEX)
- 550 V
- Wire cross section max. (ATEX)
- 2.5 mm²
- Current (IECEX)
- 21 A
- Marking EN 60079-7
- Ex eb II C Gb
Certificate No. (IECEX)IECEXTUR16.0036U
Current (ATEX)21 A
Max. voltage (IECEX)550 V
Wire cross section max. (IECEX)2.5 mm²
Ex 2014/34/EU labelII 2 G D
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length
- 10 mm
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Connection cross-section, stranded, max.2.5 mm²
Connection directiontop
Number of connections4
Twin wire-end ferrules, max.0.75 mm²
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 28
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 28 AWG
- Conductor size Field wiring min. (cURus)
- 28 AWG
- Current size C (cURus)
- 20 A
- Voltage size B (cURus)
- 600 V
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)12 AWG
Conductor size Field wiring max. (cURus)12 AWG
Current size B (cURus)20 A
Current size D (cURus)5 A
Voltage size C (cURus)600 V
