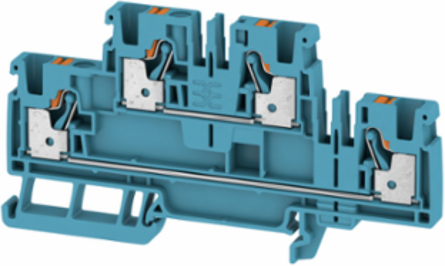

Weidmuller 2540040000 A2T Double-Tier Terminal Block, 4 mm2, 800 V, 32 A, Blue
- MPN: 2540040000
- PPN: WDM-2540040000
CAD
$4.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Double-tier terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, cURus |
|---|
| UL File Number Search | E60693 |
|---|
Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 100 mm |
| Depth | 53.5 mm |
| Depth including DIN rail | 54.5 mm |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 3.937 inch |
| Depth (inches) | 2.106 inch |
| Net weight | 20.416 g |
Additional Technical Data
| Installation advice | Rail |
|---|---|
| Snap-on | No |
| Type of mounting | TS 35 |
| Open sides | right |
|---|---|
| Type of fixing | Snap-on |
| With snap-in pegs | No |
Material Data
| Material | Wemid |
|---|---|
| Colour of operational elements | orange |
| Colour | blue |
|---|---|
| UL 94 flammability rating | V-0 |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| End cover plate required | Yes |
|---|---|
| Number of levels | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | Yes |
| PEN function | No |
| Number of potentials | 2 |
|---|---|
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Rated current | 32 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 2.04 W |
| Pollution severity | 3 |
| Rated voltage | 800 V |
|---|---|
| Current at maximum wires | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Surge voltage category | III |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Gauge to IEC 60947-1 | A4 |
| Stripping length | 12 mm |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Connection cross-section, stranded, max. | 4 mm² |
| Connection direction | top |
| Number of connections | 4 |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size C (cURus) | 30 A |
| Voltage size B (cURus) | 600 V |
| Voltage size D (cURus) | 600 V |
| Conductor size Factory wiring max. (cURus) | 10 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 10 AWG |
| Current size B (cURus) | 30 A |
| Current size D (cURus) | 5 A |
| Voltage size C (cURus) | 600 V |
