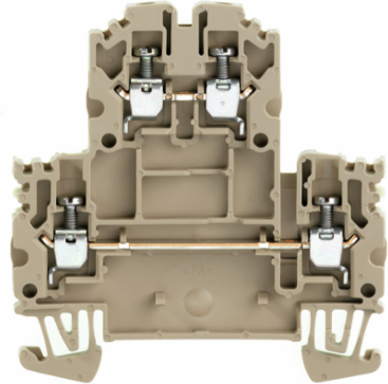

Weidmuller 1041600000 WDK 2.5N
- MPN: 1041600000
- PPN: WDM-1041600000
CAD
$6.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Double-tier terminal, Screw connection, 2.5 mm², 800 V, 24 A, dark beige
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 800 V |
|---|---|
| Current at Maximum Wires | 28 A |
| Power Loss | 0.77 W |
| Number of Connections | 4 |
| Levels Cross-Connected Internally | No |
| Type of Connection | Screw connection |
| Type of Mounting | Snap-on |
| Height | 61 mm (2.402 inch) |
| Net Weight | 11.06 g |
| Wire Connection Cross-Section | 0.05 mm2 - 4 mm2 |
| Tightening Torque | 0.4 - 0.6 Nm |
| Material | Wemid (dark beige) |
| Operating Temperature Range | -60 C to 120 C (Continuous), see EC Design Test Certificate/IECEx Certificate for details |
| Standards | IEC 60947-7-1, UL Listed |
| Explosion-Tested Version | Yes |
| Certificate Number (CSA) | 200039-1057876 |
| Certificate Number (IECEX) | IECEXULD15.0003U |
| PEN Function | No |
| End Cover Plate Required | Yes |
| Number of Clamping Points per Level | 2 |
| Number of Potentials per Tier | 1 |
| Stripping Length | 8 mm |
| Voltage Size D (CSA) | 600 V |
| Wire Cross Section Max (CSA) | 12 AWG |
| Wire Connection Cross Section, Finely Stranded Min | 0.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/4 Min | 2.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/1 Min | 0.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/1, 2 Clampable Wires Min | 0.5 mm2 |
| Wire Connection Cross Section, Solid Core Min | 0.5 mm2 |
| Wire Cross Section Max (ATEX) | 2.5 mm2 |
| Connection Cross Section, Stranded Max | 4 mm2 |
| Wire Cross-Section, Finely Stranded, Two Clampable Wires Min | 0.5 mm2 |
| Torque Level with DMS Electric Screwdriver | 1 |
| ETIM 6.0, 7.0 | EC000897 |
| Version | Screw connection, for plug-in cross-connector, One end without connector |
| Rated Current | 24 A |
|---|---|
| Rated Impulse Withstand Voltage | 8 kV |
| Pollution Severity | 3 |
| Number of Levels | 2 |
| Clamping Screw | M 2.5 |
| Mounting Rail | TS 35 |
| Width | 5.1 mm (0.201 inch) |
| Depth | 62 mm (2.441 inch) including DIN rail 62.45 mm |
| Rated Cross-Section | 2.5 mm2 |
| Wire Connection Cross-Section AWG | AWG 30 - AWG 12 |
| Blade Size | 0.6 x 3.5 mm |
| UL 94 Flammability Rating | V-0 |
| Storage Temperature Range | -25 C to 55 C |
| Approvals/Compliance | CE, CSA, DEMKOATEX, EAC, GERMLLOYD, IECEXULD, KEMAATEX, KEMAKEUR, RoHS Compliant, IECEx, ATEX, UL Listed |
| Marking EN 60079-7 | Ex eb II C Gb |
| Certificate Number (ATEX) | KEMA00ATEX2061U |
| PE Function | No |
| N-Function | No |
| Open Sides | Right |
| Number of Potentials | 2 |
| Number of Similar Terminals | 1 |
| Safety Notice | Safety Information |
| Voltage Size C (CSA) | 300 V |
| Wire Cross Section Min (CSA) | 26 AWG |
| Wire Connection Cross Section, Finely Stranded Max | 4 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/4 Max | 2.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/1 Max | 2.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules DIN 46228/1, 2 Clampable Wires Max | 1.5 mm2 |
| Wire Connection Cross Section, Solid Core Max | 4 mm2 |
| Connection Cross Section, Stranded Min | 1.5 mm2 |
| Wire Cross-Section, Finely Stranded, Two Clampable Wires Max | 1.5 mm2 |
| Gauge to IEC 60947-1 | A3 |
| eClass 10.0, 9.0, 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-11 |
