Weidmuller 1041680000 WDK 2.5N BL
- MPN: 1041680000
- PPN: WDM-1041680000
CAD
$6.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

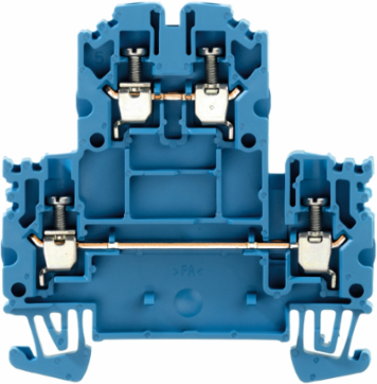

Double-tier terminal, Screw connection, 2.5 mm², 800 V, 24 A, blue
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 800 V |
|---|---|
| Max Voltage (IECEx/ATEX) | 550 V |
| Current Size C (CSA) | 20 A |
| Voltage Size D (CSA) | 600 V |
| Current at Maximum Wires | 28 A |
| Clamping Range | 0.05 - 4 mm2 |
| Wire Cross Section Max | 4 mm2 |
| Wire Cross Section Max AWG | AWG 12 |
| Tightening Torque | 0.4 - 0.6 Nm |
| Power Loss | 0.77 W |
| Width | 5.1 mm (0.201 inch) |
| Depth | 62 mm (2.441 inch) |
| Number of Connections | 4 |
| Connection Direction | on side |
| Connection Type | Screw connection |
| Flammability Rating | UL 94 V-0 |
| Standards | IEC 60947-7-1 |
| Explosion Tested | Yes |
| Certificate No. (IECEX) | IECEXULD15.0003U |
| Certificate No. (CSA) | 200039-1057876 |
| Color | Blue |
| Rated Current | 24 A |
|---|---|
| Max Current (IECEx/ATEX) | 21 A |
| Current Size D (CSA) | 5 A |
| Voltage Size C (CSA) | 300 V |
| Rated Cross-Section | 2.5 mm2 |
| Wire Cross Section Min | 0.05 mm8 |
| Wire Cross Section Min AWG | AWG 30 |
| Stripping Length | 8 mm |
| Rated Impulse Withstand Voltage | 8 kV |
| Pollution Severity | 3 |
| Height | 61 mm (2.402 inch) |
| Depth Including DIN Rail | 62.45 mm |
| Number of Levels | 2 |
| Mounting Type | Snap-on |
| Material | Wemid |
| ROHS Compliance | Compliant without exemption |
| Approvals | CE, CSA, DEMKOATEX, EAC, GERMLLOYD, IECEXULD, KEMAATEX, KEMAKEUR |
| Marking EN 60079-7 | Ex eb II C Gb |
| Certificate No. (ATEX) | KEMA00ATEX2061U |
| Safety Notice | Safety Information |
